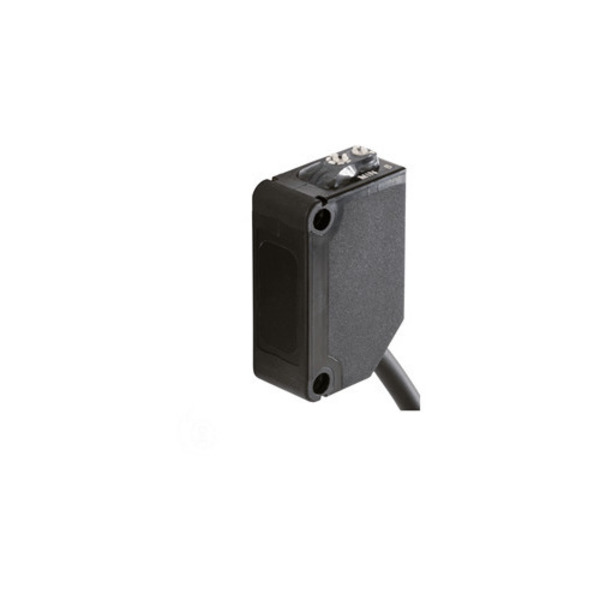

PANASONIC CX-423 DIFFUSE REFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $128.70
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-423
IMS Product Code: 1976582
Packaging: Sold Individually
Description:
Panasonic CX-423 Diffuse Reflective Photoelectric Sensor, Narrow-View Compact, 70-300 mm Sensing Distance, NPN, with Red LED Source, 12 to 24 VDC Supply with NPN Output, Selectable LO and DO Mode, Compact Housing Features 70 to 200mm Distance and 2m Connection Cable, Single Turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Diffuse
- Sensing Mode Details: Narrow View
- Sensor Features: Potentiometer adjustment, Detects opaque, translucent, or transparent targets and 0.5mm copper wire. 15% or less hysterisis, 0.5mm repeatability
- Light Source: Red LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 70mm to 300mm
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 2m
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
