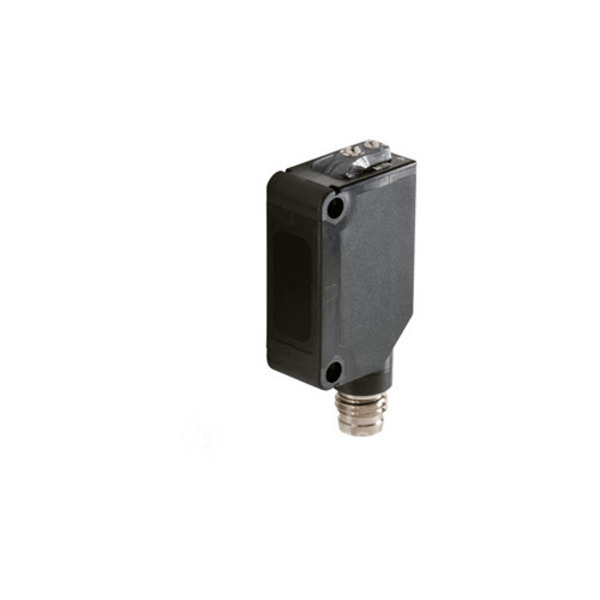

PANASONIC CX-422-Z DIFFUSE REFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $78.00
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-422-Z
IMS Product Code: 1976580
Packaging: Sold Individually
Description:
Panasonic CX-422-Z Diffuse Reflective Photoelectric Sensor, Compact, 800 mm Sensing Distance, NPN, M8 4 Pin Receptacle, With IR LED Source, 12 to 24 VDC Supply With NPN Output Selectable, LO and DO Mode, Compact Housing Features 800 mm Distance, and M8 4 Pin QD, Single Turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Diffuse
- Sensor Features: Potentiometer adjustment, Detects opaque, translucent, or transparent targets, 15% or less hysterisis, 1mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 800mm
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: M8 4P QD
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
