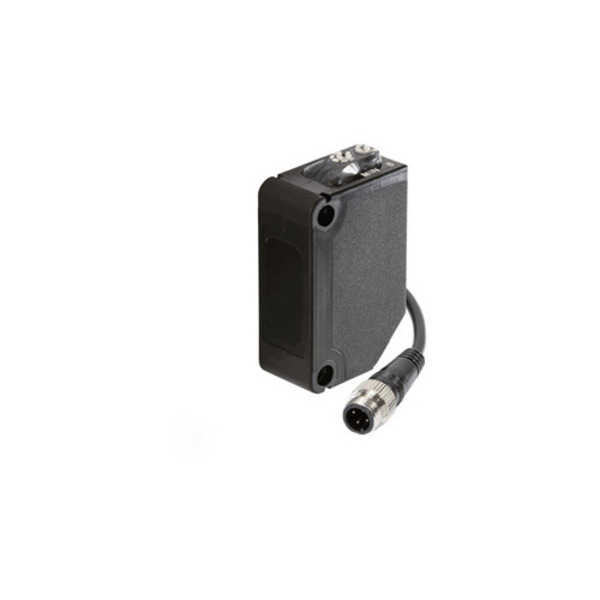

PANASONIC CX-422-J DIFFUSE REFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $82.88
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-422-J
IMS Product Code: 1976572
Packaging: Sold Individually
Description:
Panasonic CX-422-J Diffuse Reflective Photoelectric Sensor, Compact, 800 mm Sensing Distance, NPN, M12 Pigtail, With IR LED Source, 12 to 24 VDC Supply With NPN Output, Selectable LO and DO Mode, Compact Housing Features 800 mm Distance, and M12 4 Pin QD, Single Turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Diffuse
- Sensor Features: Potentiometer adjustment, Detects opaque, translucent, or transparent targets, 15% or less hysterisis, 1mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 800mm
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: M12 4P pigtail
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
