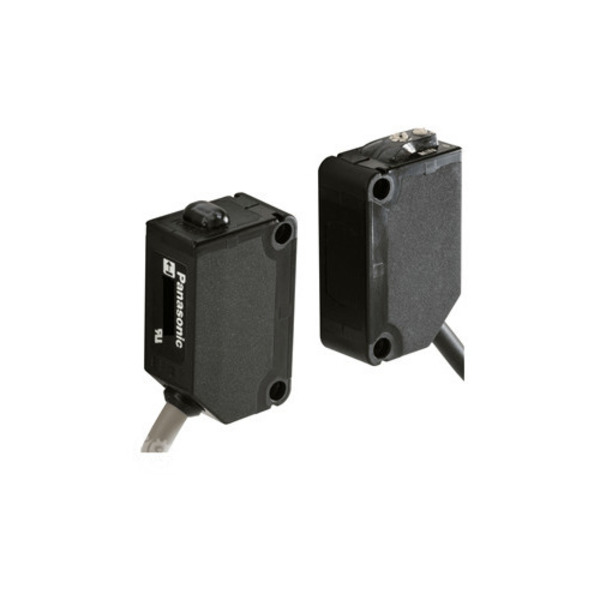

PANASONIC CX-413-P-C05 COMPACT PHOTOELECTRIC THRUBEAM SENSOR
Starting At: $84.83
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-413-P-C05
IMS Product Code: 1976549
Packaging: Sold Individually
Description:
Panasonic CX-413-P-C05 Compact Photoelectric Thrubeam Sensor, 30 M Sensing Distance, PNP, Cabled, With IR LED Source, 12 to 24 VDC Supply With PNP Output, Selectable LO and DO Mode, Compact Housing Features 30 Meter Distance, .5m Connection Cables, Single Turn Adjustment Potentiometer, 2ms Response, Suggested Replacement: CX-413-P With 1m Cable
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Thrubeam
- Sensing Mode Details: Long sensing range
- Sensor Features: Potentiometer adjustment, ø12mm minimum sensing target - opaque. 05mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 30 meter
- Output: PNP
- Output Details: 1 each PNP
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 0.5m
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
