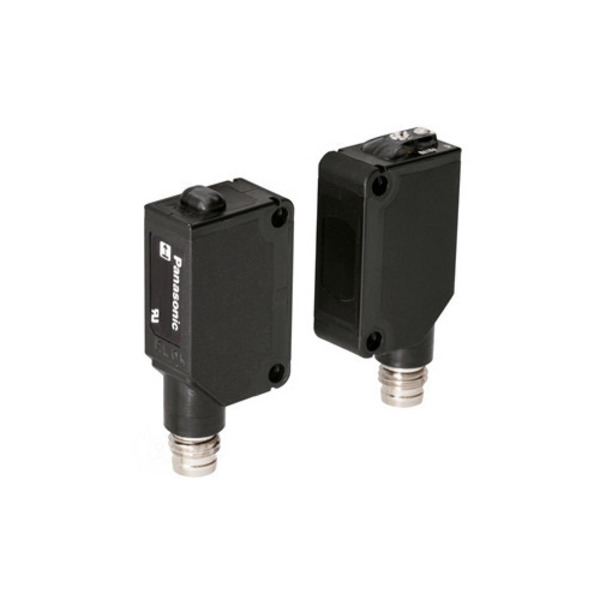

PANASONIC CX-412-Z COMPACT PHOTOELECTRIC THRUBEAM SENSOR
Starting At: $93.60
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-412-Z
IMS Product Code: 1976542
Packaging: Sold Individually
Description:
Panasonic CX-412-Z Compact Photoelectric Thrubeam Sensor, 15 M Sensing Distance, NPN, M8 4 Pin Receptacle, Thrubeam Photoelectric Sensor With IR LED Source, 12 to 24 VDC supply With NPN Output, Selectable LO and DO Mode, Compact Housing, Features 15 Meter Distance and M8 4 Pin QD Connector, Single Turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Thrubeam
- Sensing Mode Details: Long sensing range
- Sensor Features: Potentiometer adjustment, ø12mm minimum sensing target - opaque. 05mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 15 meter
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: M8 4P QD
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
