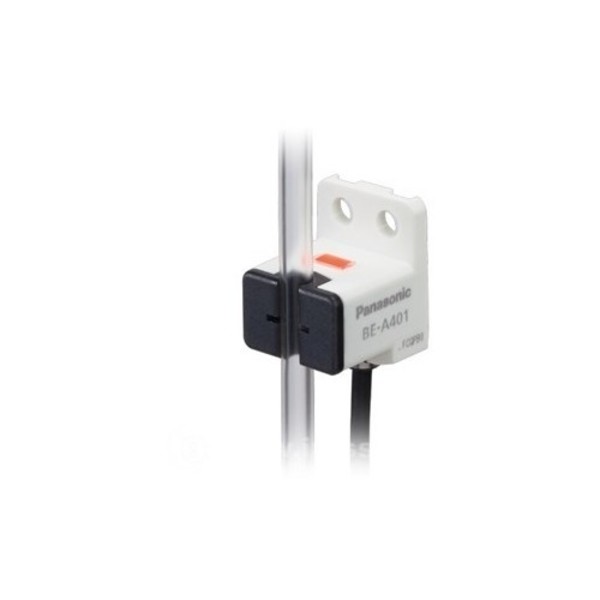

PANASONIC BE-A401 OPTICAL BUBBLE SENSOR
Starting At: $79.95
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: BE-A401
IMS Product Code: 1974503
Packaging: Sold Individually
Description:
Panasonic BE-A401 Optical Bubble Sensor for Ø4mm PVC Tubing - Two NPN Outputs - 2m Cable, High Speed Response Time – 20 µs, Detects Liquid / Bubbles In Small Diameter 4mm Tubes, Ultra Compact Size – Installs In Small Spaces Or In Close Proximity, 5 to 24 VDC – For A Wide Range Of Power Supply Voltages, Built-in Amplifier, Liquid-Absent: ON and Liquid-Present: ON, CE Approved, CE: EMC Directive
Specifications:
- Series: BE-A
- Sensing Type: Liquid Gap/Bubble sensor
- Features: Detects air gaps as small as 0.8mm in ø4mm OD × ø2.4mm ID tubing
- Sensing Source: Infrared LED (non-modulated)
- Minimum Detectable Object: 0.8mm air gap
- Supply Voltage: DC
- Supply Voltage Details: 5 to 24VDC
- Control Output: NPN
- Control Output Mode: Liquid-absent-ON or Liquid-present-ON selectable
- Response Time: 20µs or less
- Operating Temperature: -25 to +55 °C
- IP Rating: IP40
- Enclosure Details: PBT enclosure, Polyamide tube holder, polycarbonate indicator
- P) Connection Details: Cable 1 meter
- Item Weight: 0.07 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
