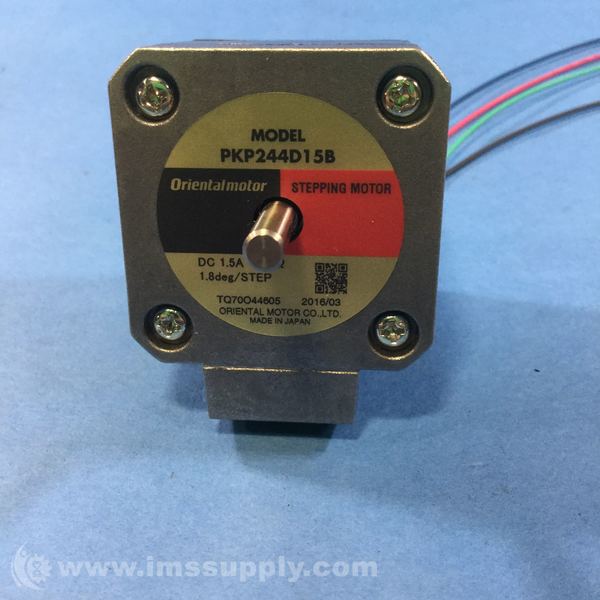

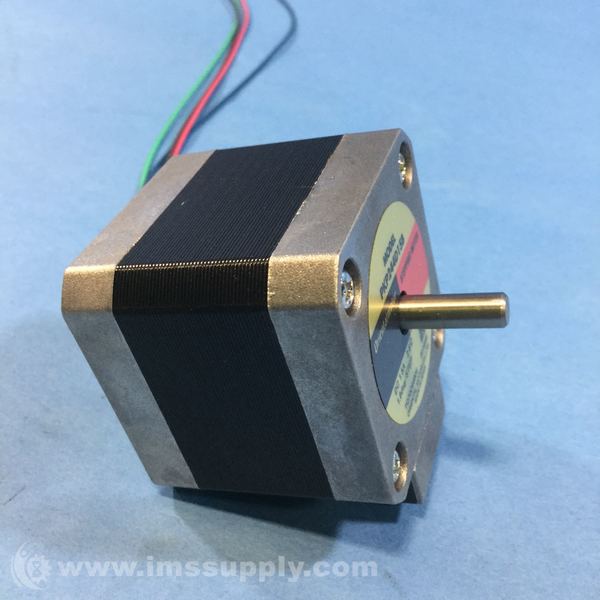

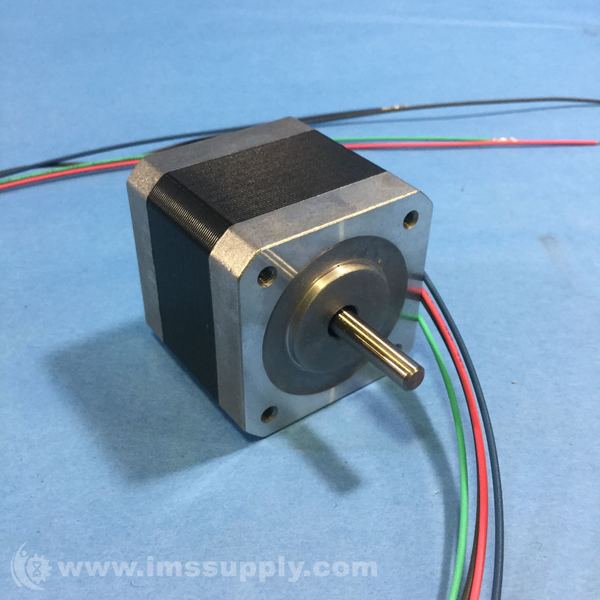

ORIENTAL MOTOR PKP244D15B
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: PKP244D15B
IMS Product Code: 1791349
Packaging: Sold Individually
Description:
Oriental Motor PKP244D15B
Specifications:
- Motor Type: 2-Phase
- Basic Step Angle: 1.8°
- Frame Size: 1.65 in
- Motor Length: 1.54 in.
- Holding Torque: 68 oz-in
- Current per Phase (A/Phase): 1.5
- Voltage (VDC): 3.9
- Resistance (Ω/Phase): 2.6
- Inductance (mH/Phase): 4.9
- Shaft/Gear Type: Round Shaft (No Gearhead)
- Output Shaft Diameter: 5 mm
- Shaft: Double
- Encoder: Not Equipped
- Motor Connection Type: Connector
- Connection Type: Bipolar
- Lead Wires: 4
- Rotor Inertia: 0.31 oz-in²
- RoHS Compliant: Yes
- Insulation Class: Class B [266°F (130°C)]
- Insulation Resistance: 100 M Ω or More When 500 VDC Megger is Applied Between the Windings and the Case Under Normal Ambient Temperature and Humidity.
- Dielectric Strength: Sufficient to Withstand 0.5 kVAC at 50 Hz or 60 Hz Applied Between the Windings and the Case for 1 Minute Under Normal Ambient Temperature and Humidity.
- Temperature Rise: Temperature Rise of the Windings is 176°F (80°C) or Less Measured by the Change Resistance Method. (at Rated Voltage, at Standstill, 2 Phases Energized)
- Ambient Temperature Range: 14 ~ 122°F (-10 ~ 50°C) (Non-Freezing)
- Ambient Humidity: 85% or Less (Non-Condensing)
- Shaft Runout: 0.05 mm (0.002 in.) T.I.R.
- Step Accuracy: ±3 arc Minutes (±0.05°)
- Radial Load: 0 in. From Shaft End = 4.5 lb0.2 in. From Shaft End = 5.6 lb0.39 in. From Shaft End = 7.6 lb 0.59 in. From Shaft End = 11.7 lb
- Axial Load: 2.2 lb
- Radial Play: 0.025 mm (0.001 in.) Maximum of 5 N (1.12 lb.)
- Axial Play: 0.075 mm (0.003 in.) Maximum of 10 N (2.2 lb.)
- Concentricity: 0.075 mm (0.003 in.) T.I.R.
- Perpendicularity: 0.075 mm (0.003 in.) T.I.R.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
