OPTEX ZT-L3000CN 30 METER THRUBEAM LASER NPN M8 4 PIN QD
Starting At: $176.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: ZT-L3000CN
IMS Product Code: 1781992
Packaging: Sold Individually
Description:

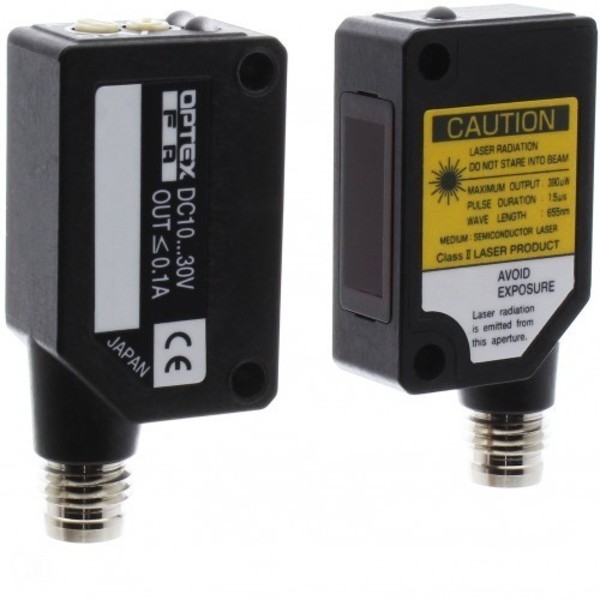

Optex ZT-L3000CN 30 Meter Thrubeam Laser NPN M8 4 Pin QD
Beam Spot is only 30mm at a 30 Meter Distance
Specifications:
| Sensing Mode | Thrubeam |
| Features | Cross-talk prevention for two sensors mounted side-by-side |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 20mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | 390µW |
| FDA Laser Class | Class I |
| Sensing Distance | 30m |
| Spot Size | 30mm at 30m |
| Repeatability | 0.5mm |
| Hysteresis | N/A |
| Sensitivity Adjustment | Potentiometer 1-turn |
| Display | LED Indicator |
| External Input | Laser Off |
| Response Time | 250µs |
| Control Output | NPN |
| Timing Option | N/A |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | M8 4P QD |
| Includes | BEF-W100-A Mounting Brackets |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
