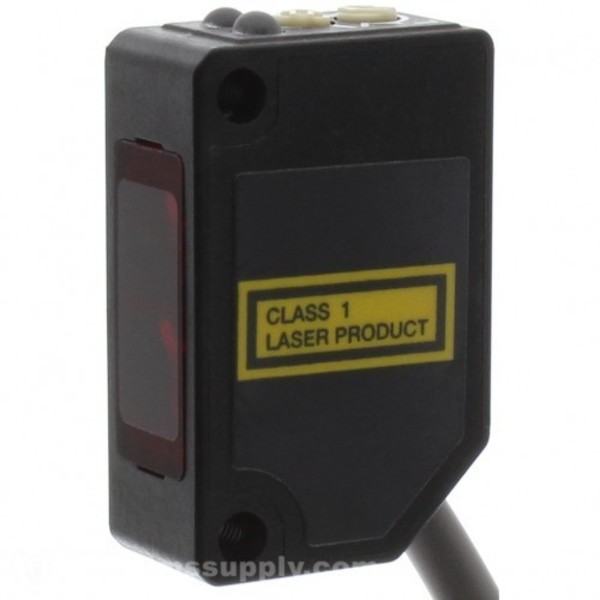

OPTEX ZD-L40P 400MM DIFFUSE LASER PNP 2 METER CABLE TYPE
Starting At: $153.86
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: ZD-L40P
IMS Product Code: 1781898
Packaging: Sold Individually
Description:
Optex ZD-L40P 400mm Diffuse Laser PNP 2 Meter Cable Type
Specifications:
| Sensing Mode | Diffuse |
| Features | Long distance sensing with pin-point beam. Cross-talk prevention for two sensors |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 30mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | 3mW |
| FDA Laser Class | Class II |
| Sensing Distance | 400mm |
| Spot Size | 2mm at 400mm |
| Repeatability | 0.5mm |
| Hysteresis | 20% at 400mm |
| Sensitivity Adjustment | Potentiometer 1-turn |
| Display | LED Indicator |
| External Input | Laser Off |
| Response Time | 250µs |
| Control Output | PNP |
| Timing Option | N/A |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | 2m cable |
| Includes | BEF-W100-B Mounting Bracket |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
