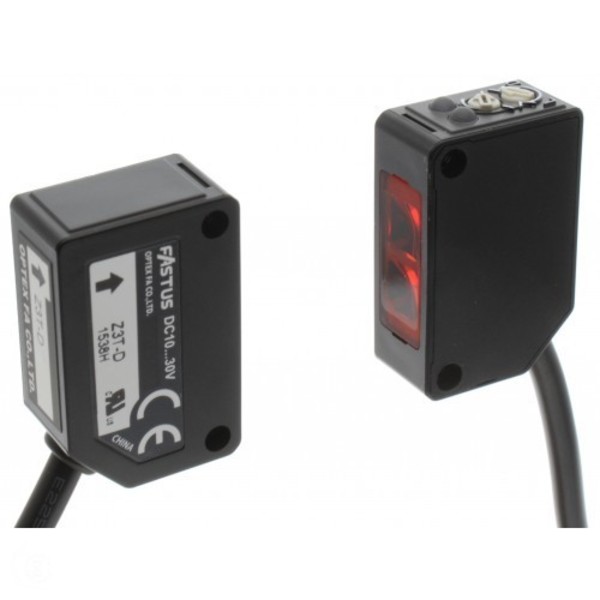

OPTEX Z3T-2500P RED LED THRUBEAM 25M PNP 2M CABLE
Starting At: $61.74
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: Z3T-2500P
IMS Product Code: 1781895
Packaging: Sold Individually
Description:
Optex Z3T-2500P Red LED Thrubeam 25M PNP 2M cable
The Z3 series thrubeam has a 25 meter sensing distance. This high power provides significant increase in excess gain, which helps the sensor overcome interference from dust or other fine particles.
Output and stability indicators are brighter than those of conventional models and easier to view from any direction
Specifications:
| Sensing Mode / Type | Thrubeam |
| Special Features | |
| Sensing Distance | 0 to 25 meter |
| Resolution / Min Detectable Object | 0.2mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 35mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | PNP |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Mounting bracket/screws are not included |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
