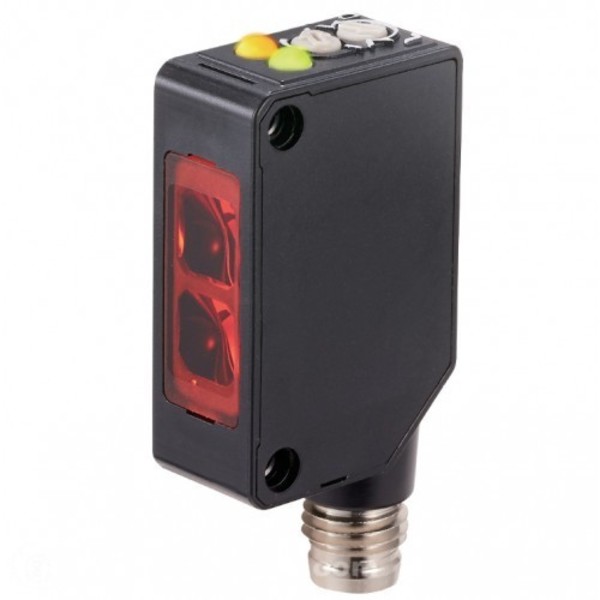

OPTEX Z3R-Q200CN4 RED LED POL RETRO FOR CLEAR DETECTION 2M NPN M8
Starting At: $109.76
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: Z3R-Q200CN4
IMS Product Code: 1781885
Packaging: Sold Individually
Description:
Optex Z3R-Q200CN4 Red LED Pol Retro for Clear Detection 2M NPN M8 4P QD
Using retro-reflective mode this transparent detection sensors provides reliable detection
of most transparent objects at a very cost effective price.
With a 2 meter detection distance, this sensor is perfect for sensing transparent objects on pallets.
Output and stability indicators are brighter than those of conventional models and easier to view from any direction
Please order reflector and bracket separately
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective for Transparent Object Detection |
| Special Features | |
| Sensing Distance | .01 to 2 meter |
| Resolution / Min Detectable Object | 0.2mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | Reflector and mounting bracket/screws are not included |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
