OPTEX Z3R-400N RED LED POLARIZED RETRO-REFLECTIVE 4M NPN 2M CABLE
Starting At: $61.74
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: Z3R-400N
IMS Product Code: 1781878
Packaging: Sold Individually
Description:

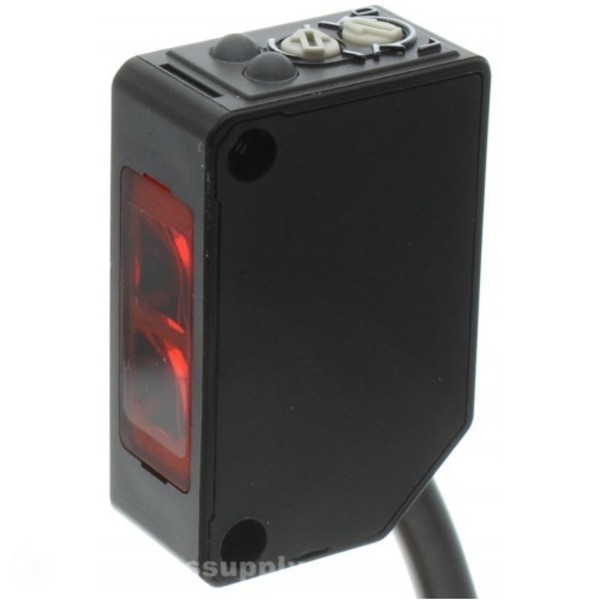

Optex Z3R-400N Red LED Polarized Retro-reflective 4M NPN 2M cable
The small beam of the Z3R-400 sensor allows for detecting or counting product flowing through a a process with narrow spaces
Output and stability indicators are brighter than those of conventional models and easier to view from any direction
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Special Features | |
| Sensing Distance | .01 to 4 meter |
| Resolution / Min Detectable Object | 0.2mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Reflector and mounting bracket/screws are not included |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 17 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
