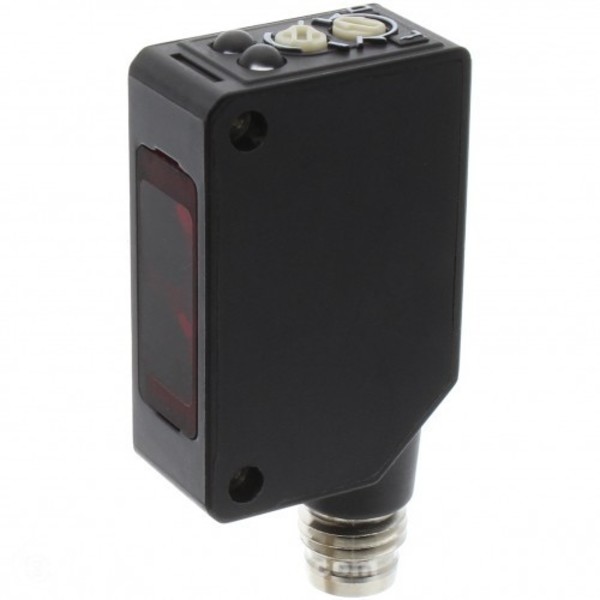

OPTEX Z3D-W20CN4 DIVERGENT 200MM M8 4 PIN CABLE NPN OUTPUT
Starting At: $83.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: Z3D-W20CN4
IMS Product Code: 1781859
Packaging: Sold Individually
Description:
Optex Z3D-W20CN4 Divergent 200mm M8 4 Pin Cable NPN Output
The Z3D-W Divergent sensor is unlensed and has a wide beam perfect for detecting fluttering films at close distances and also detecting small parts because there is no dead zone.
Specifications:
| Sensing Mode / Type | Divergent |
| Special Features | Reliable detection of vibrating, fluttering surfaces. Good performance in detecting clear material as a close distance. |
| Sensing Distance | 1 to 200mm |
| Resolution / Min Detectable Object | |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | .5ms |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | Order mounting bracket and molded cable separately |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
