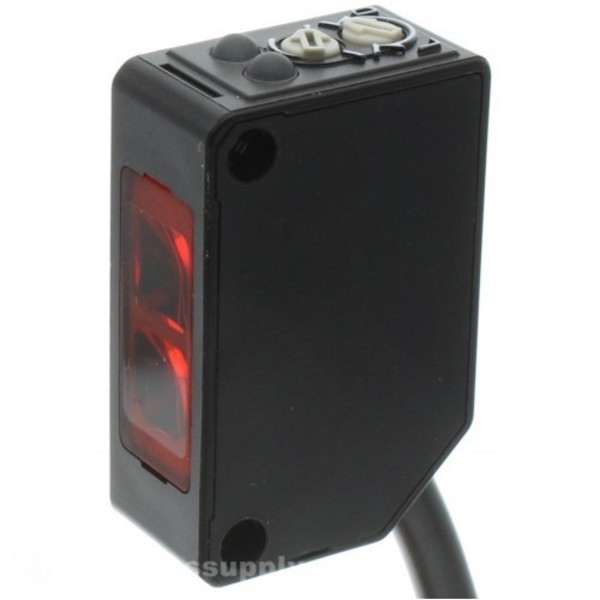

OPTEX Z3D-L09P RED LED CONVERGENT 10 TO 90MM PNP 2M CABLE
Starting At: $68.60
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: Z3D-L09P
IMS Product Code: 1781858
Packaging: Sold Individually
Description:
Optex Z3D-L09P Red LED Convergent 10 to 90mm PNP 2M cable
Output and stability indicators are brighter than those of conventional models and easier to view from any direction
Unique design incorporates convergent sensing with and adjustment potentiometer allowing for varying convergent points from 10 to 90mm.
Specifications:
| Sensing Mode / Type | Convergent |
| Special Features | |
| Sensing Distance | 10 to 90mm |
| Resolution / Min Detectable Object | 0.4mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | PNP |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Mounting bracket/screws are not included |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Availability: 19 In Stock
Lead Time: 3 to 5 Days
