OPTEX Z2D-80P-F05 DIFFUSE IR LED 800MM PNP 2M CABLE
Starting At: $78.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: Z2D-80P-F05
IMS Product Code: 1781797
Packaging: Sold Individually
Description:

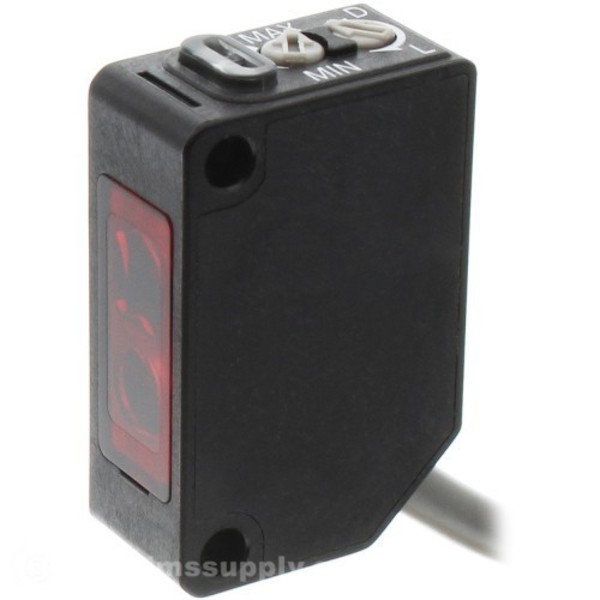

Optex Z2D-80P-F05 Diffuse IR LED 800mm PNP 2M cable
High Power infrared LED
Specifications:
| Sensing Mode / Type | Diffuse |
| Special Features | |
| Sensing Distance | 800mm |
| Resolution / Min Detectable Object | |
| Light Source | Infrared LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | PNP |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Mounting bracket/screws |
