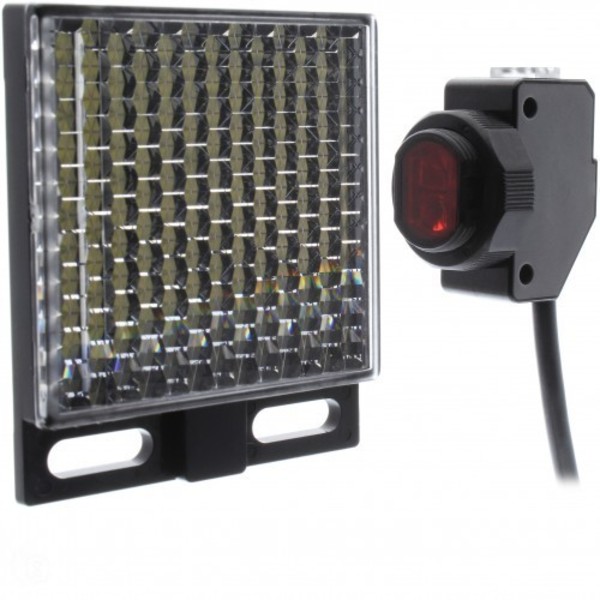

OPTEX YR-140N POLARIZED RETRO-REFLECTIVE 3.5M NPN LO/DO 2M CABLE
Starting At: $75.84
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: YR-140N
IMS Product Code: 1781711
Packaging: Sold Individually
Description:
Optex YR-140N Polarized Retro-reflective 3.5M NPN LO/DO 2M cable
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
3.5 Meter sensing distance.
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Sensing Distance | 0.01 to 3.5 meter |
| Resolution / Min Detectable Object | 0.5mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | 2 each NPN |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | M18 threaded mounting nut |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
