OPTEX YR-140N-R1 POLARIZED RETRO-REFLECTIVE 3.5M NPN LO/DO
Starting At: $62.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: YR-140N-R1
IMS Product Code: 1781715
Packaging: Sold Individually
Description:

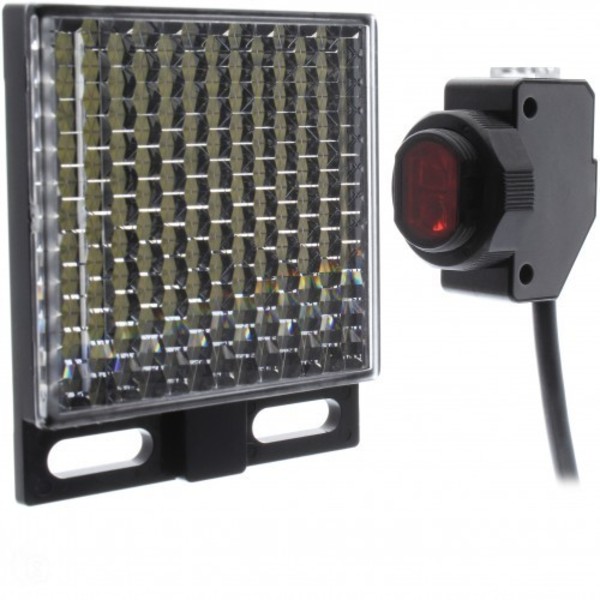

Optex YR-140N-R1 Polarized Retro-reflective 3.5M NPN LO/DO
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
3.5 Meter sensing distance.
0.3 meter cable length
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Sensing Distance | 0.01 to 3.5 meter |
| Resolution / Min Detectable Object | 0.5mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | 2 each NPN |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 250mm Cable |
| Includes | M18 threaded mounting nut |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
