OPTEX YR-140CP POLARIZED RETRO-REFLECTIVE 3.5M PNP LO/DO M8 QD
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: YR-140CP
IMS Product Code: 1781710
Packaging: Sold Individually
Description:

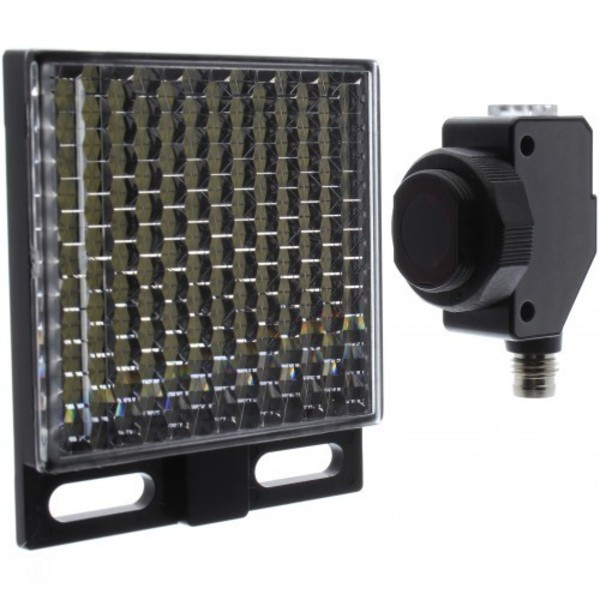

Optex YR-140CP Polarized Retro-reflective 3.5M PNP LO/DO M8 QD
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
3.5 Meter sensing distance.
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Sensing Distance | 0.01 to 3.5 meter |
| Resolution / Min Detectable Object | 0.5mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | 2 each PNP |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | M18 threaded mounting nut |
