OPTEX YD-L2P CONVERGENT 43MM PNP LO/DO 2M CABLE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: YD-L2P
IMS Product Code: 1781703
Packaging: Sold Individually
Description:

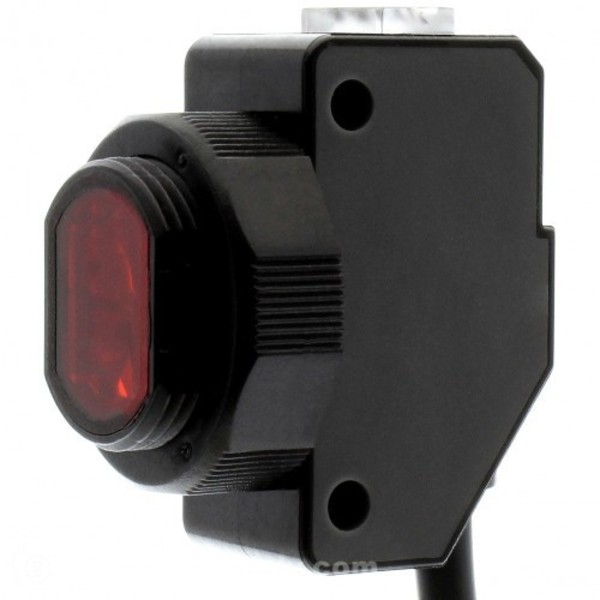

Optex YD-L2P Convergent 43mm PNP LO/DO 2M cable
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
Convergent model with 43mm sensing range.
Specifications:
| Sensing Mode / Type | Convergent |
| Sensing Distance | 43mm |
| Resolution / Min Detectable Object | 0.5mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | 2 each PNP |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | M18 threaded mounting nut |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
