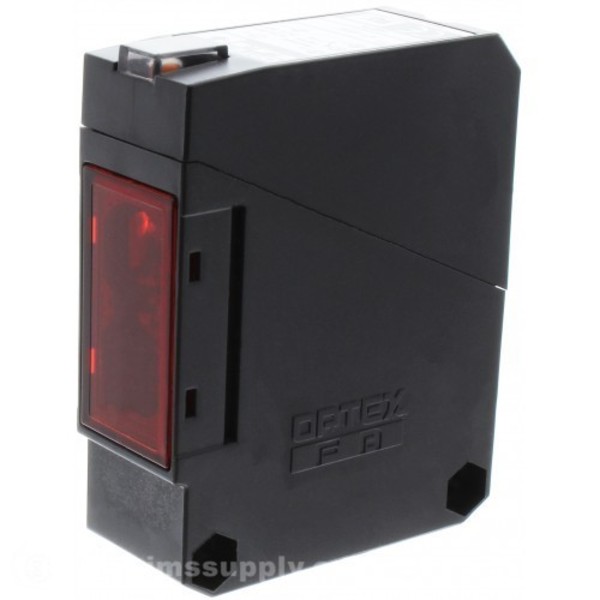

OPTEX VD-300 AC/DC DIFFUSE 3M SPDT RELAY SCREW TERM, 1/2" KO
Starting At: $142.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: VD-300
IMS Product Code: 1781638
Packaging: Sold Individually
Description:
Optex VD-300 AC/DC Diffuse 3M SPDT relay Screw term, 1/2" KO
Ideal for dusty and dirty environments
Simple screw terminal wiring layout.
Specifications:
| Sensing Mode / Type | Diffuse |
| Sensing Distance | 3.0 meter |
| Light Source | Infrared LED |
| Supply Voltage | 12 to 240VDC / 24 to 240VAC |
| Minimum Detectable Object | Ø40mm |
| Current Consumption | 5VA |
| Response Time | 20ms |
| Sensitivity Adjustment | 1-Turn Potentiometer |
| Output | SPDT Relay 0.1 Amp |
| Model Type | |
| Output Operation Mode | Light-on |
| Protection | IP67 |
| Temperature | -25° to +55° C |
| Connection | Screw Terminal Type w/Lift-off Cover. Two 1/2" NPT Entry Ports |
| Includes | Mounting Bracket/Hardware |
| Timer Option | None |
| Shock Rating | 50G |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
