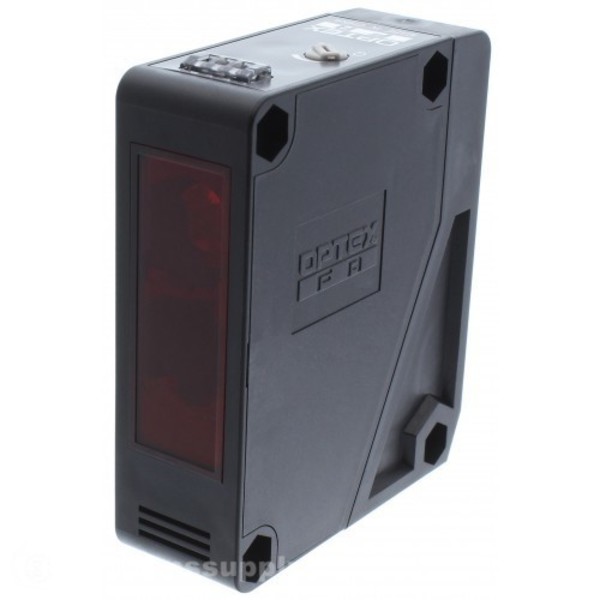

OPTEX V4D-200 AC/DC DIFFUSE 2M SPDT RELAY SCREW TERM, 1/2" KO
Starting At: $98.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: V4D-200
IMS Product Code: 1781586
Packaging: Sold Individually
Description:
Optex V4D-200 AC/DC Diffuse 2M SPDT relay Screw term, 1/2" KO
Ideal for dusty and dirty environments
Simple screw terminal wiring layout.
Specifications:
| Sensing Mode / Type | Diffuse |
| Sensing Distance | 2.0 meter |
| Light Source | Red LED |
| Supply Voltage | 24 to 240 VAC/VDC |
| Minimum Detectable Object | |
| Current Consumption | 2VA |
| Response Time | 15ms |
| Sensitivity Adjustment | 1-Turn Potentiometer |
| Output | SPDT Relay 3A DC Resistive |
| Model Type | |
| Output Operation Mode | Light-On |
| Protection | IP67 |
| Temperature | -25° to +55° C |
| Connection | Screw Terminal Lift-off Cover w/2 1/2" NPT Hubs |
| Includes | Mounting Bracket/Hardware |
| Timer Option | |
| Shock Rating | 50G |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
