OPTEX V2RF-CP FIBER OPTIC AMPLIFIER MANUAL ADJUST PNP M8 4 PIN QD
Starting At: $74.48
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: V2RF-CP
IMS Product Code: 1781534
Packaging: Sold Individually
Description:

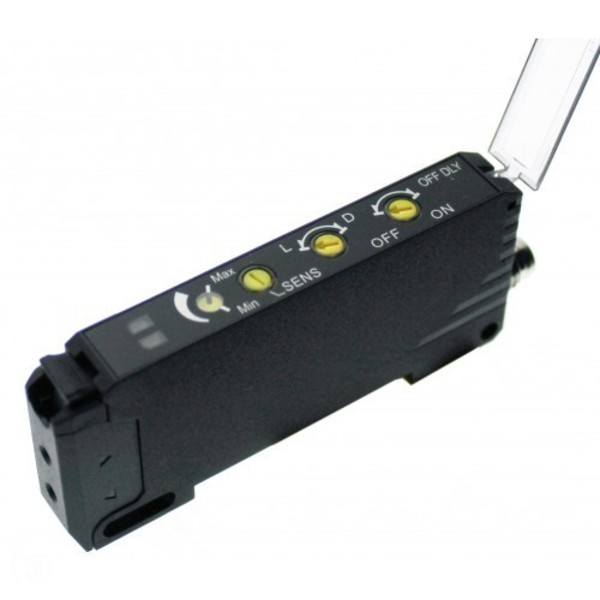

Optex V2RF-CP Fiber Optic Amplifier Manual Adjust PNP M8 4 Pin QD
The V2RF series is a cost effective fiber optic amplifier featuring an IP66 rating allowing you to mount it in locations that aren't possible with other fiber amps.
It has 8-turn potentiometer with indicator allowing for precise sensitivity for applications that require fine adjustments. The V2RF series has a simple control panel and long range sensing of up to 610 mm and a fast 250 μs response time.
Specifications:
| Features | 8-turn potentiometer with mechanical indicator. Amplifier can be mounted on DIN rail or M3 screw mount. |
| Sensitivity Adjustment | 8-turn potentiometer |
| Supply Voltage | 10 to 30 VDC |
| Light Source | Red LED |
| Indicators | Orange LED (output status) Green LED (stability status) |
| Model Type | Stand-Alone Type |
| Cross-Talk Prevention | |
| LED Power Level Control | |
| Current Consumption | 30mA |
| Response Time | 250µs |
| Output | PNP |
| Output Operation Mode | Light-on / dark-on selectable |
| Timer/Counter Option | 40ms Off-delay selectable |
| Shock Rating | 50G |
| Protection | IP66 |
| Temperature | -25 to 55° C |
| Connection | M8 4P QD |
| Includes | Does not include BEF-WLL170 DIN bracket (Order separately) |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
