OPTEX V2R-1200 AC/DC POLARIZED RETRO-REFLECTIVE 12M SPDT RELAY
Starting At: $132.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: V2R-1200
IMS Product Code: 1781520
Packaging: Sold Individually
Description:

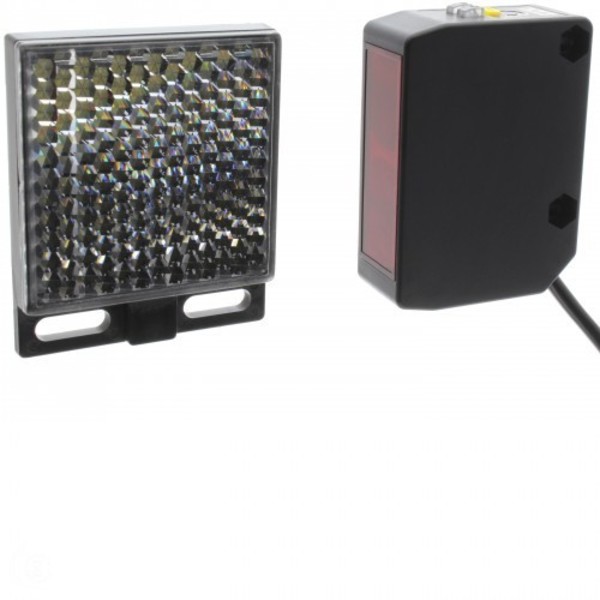

Optex V2R-1200 AC/DC Polarized Retro-reflective 12M SPDT relay 2M cable
A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.
DC24-240V AC24-240V Relay Rated 3amps at 240VAC
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Sensing Distance | 12 meter |
| Resolution / Min Detectable Object | 1mm or less |
| Light Source | Red LED |
| Supply Voltage | 24 to 240 Volt AC/DC |
| Current Consumption | 3VA |
| Response Time | 15ms |
| Sensitivity Adjustment | 2-turn potentiometer |
| Output | SPDT relay 3 amp AC |
| Output Operation Mode | L/O mode |
| Material | Case/cover ABS (glass reinforced) Lens: PMMA |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Reflector (V-61), mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
