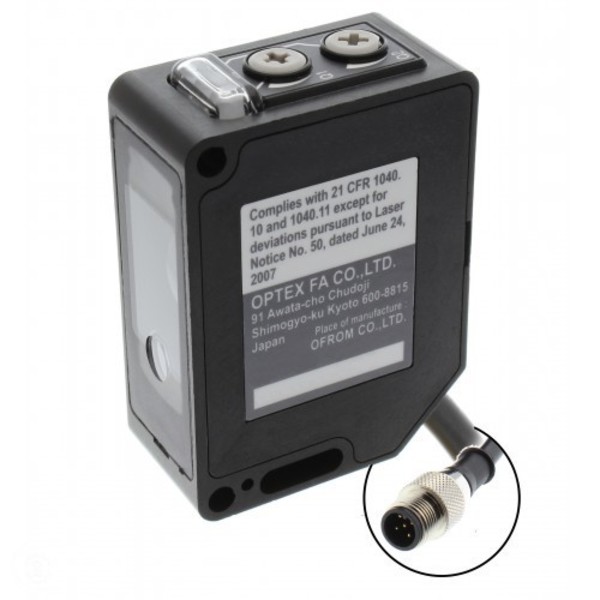

OPTEX TOF-L450DM12P 4.5 METER RANGE BGS LASER 2 PNP OUTPUTS M12
Starting At: $485.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: TOF-L450DM12P
IMS Product Code: 1781513
Packaging: Sold Individually
Description:
Optex TOF-L450DM12P 4.5 Meter Range BGS Laser 2 PNP Outputs M12 5 Pin
Usually long-distance detection sensors are large and heavy. The FASTUS TOF-L Series is a photoelectric sensor with a built-in amplifier that aims to change that. In addition to being the world's smallest TOF sensor, the TOF-L Series also features a high-sensitivity APD in the light receiving element for high-speed responses of 0.5 ms and maximum detection distances of up to 4.5m.
The TOF method measures the time it takes a pulse-emitted laser to hit a target and return, and the measurement is then converted into distance. With strong resistance to influences from the target’s surface conditions, this method is capable of producing stable detection.
By relying on distance to a workpiece rather than differences in the amount of received light for turning ON/OFF, the TOF-L Series makes it possible to achieve stable long-distance detection with a variety of workpieces, including low-reflectivity targets such as black rubber and glossy targets such as metal workpieces.
Specifications:
| Sensing Mode | Background Suppression |
| Features | Time of flight technology - super long distance and high repeat accuracy |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 85mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | 64mW 9ns (16.67MHz) |
| FDA Laser Class | Class I |
| Sensing Distance | 4.5m |
| Spot Size | Ø17mm at 4.5m |
| Repeatability | |
| Hysteresis | 15% |
| Sensitivity Adjustment | Potentiometer 4-turn |
| Display | LED Indicator |
| External Input | Laser Off |
| Response Time | 0.5ms |
| Control Output | PNP 2CH |
| Timing Option | N/A |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | M12 5P Pigtail QD |
| Includes | BEF-W100B Mounting Bracket |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
