OPTEX TOF-DL250TM12 TIME OF FLIGHT LASER 2.5M 3 DIGITAL NPN/PNP
Starting At: $494.90
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: TOF-DL250TM12
IMS Product Code: 1781508
Packaging: Sold Individually
Description:

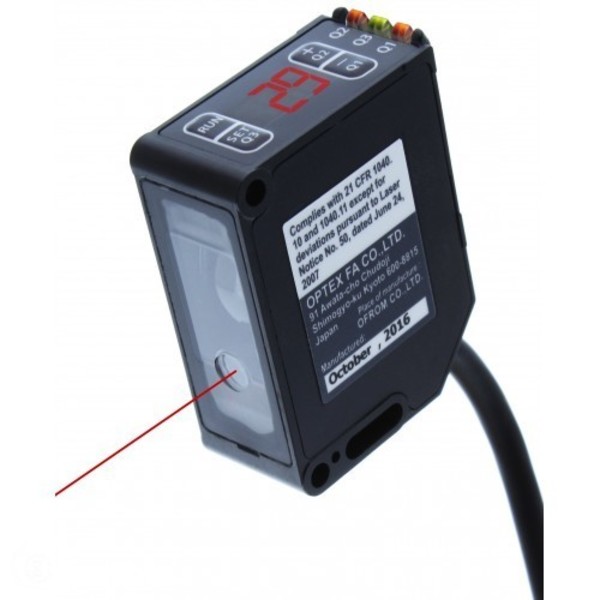

Optex TOF-DL250TM12 Time Of Flight Laser 2.5M 3 Digital NPN/PNP Output M12 5pin QD
The TOF-DL time of flight laser is ultra-compact and capable of accurately measuring at distances up to 2.5 Meters.
The TOF method measures the time it takes a pulse-emitted laser to hit a target and return, and the measurement is then converted into distance. With strong resistance to influences from the target’s surface conditions, this method is capable of producing stable detection.
The TOF-DL Laser is equipped with a 3 digit, easy to see digital display. The display allows users to check the measuring distance. Set-up is also made easy with the push-button teach functions
Wiring Diagram. There are 3 digital outputs that can be set for NPN/PNP
Specifications:
| Sensor Type | Ultra-Compact Digital Time Of Flight Laser Distance Measurement Sensor |
| Measurement Range | 0.25 to 2.5 meters |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | 390µW or less |
| Laser Class | Class I (IEC 60825-1) 21 CFR 1040.10 and 1040.11 (less notice No. 50) |
| Spot Size | Ø 10mm / 2.5M |
| Sampling Period | 200µs |
| Response Time | 0.5ms or less |
| Hysteresis | 15% or less |
| Sensitivity Setting | Teaching w/manual adjustment |
| LED Indicators | Output 1 and 2 Indicators (Orange), Output 3 Indicator / Stability Indicator / Laser off Indicator: (Orange) / (Green) / (Red) / (Off) |
| Digital Display | 7-segment, 3-digit LED Display, display units is in cm |
| External Input | Programmable as: Teaching / Laser OFF |
| Outputs | 3 Digital |
| Digital Output Type | Settable as NPN or PNP |
| Digital Output Mode | Settable as Light-on or Dark-on (applies to all outputs) |
| Digital Output Setting | The external input can be set for Output 3 |
| Analog Output | Not equipped |
| Supply Voltage | 10 to 30 VDC (10% ripple (p-p) |
| Current Consumption | 60mA or less (not including digital output loads) |
| RoHS | Directive (2011/65/EU |
| Temperature | -10 to +50° C |
| Protection | IP67 |
| Material | Housing: PC, Front cover PMMA |
| Weight | .12 lbs |
| Connection Type | M12 5P pigtail |
| Includes | BEF-WK-190 mounting bracket/screws |
| Similar To |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
