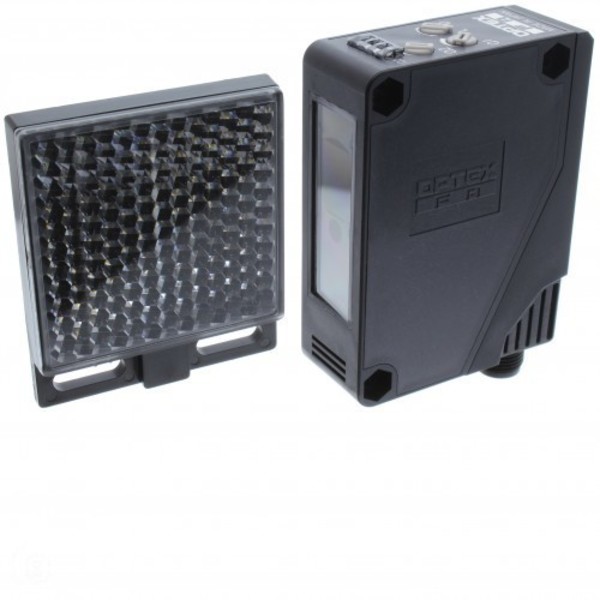

OPTEX TOF-3V2000CN 20 METER RETROREFLECTIVE TIME OF FLIGHT LASER
Starting At: $396.90
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: TOF-3V2000CN
IMS Product Code: 1781485
Packaging: Sold Individually
Description:
Optex TOF-3V2000CN 20 Meter Retroreflective Time of Flight Laser NPN M12 5 Pin QD
The TOF Series measures the time that it takes for the light source to reflect off the target or reflector. This distance is then compared to the threshold set with the turn pot adjustment and makes a decision on whether or not to activate the digital output.
The TOF sensor uses 2 laser diodes in order to compensate for temperature drift of the laser inside the case and emits directly to a receiving diode diode. The other emits on the outside of the case. By Compensating for the time difference between the 2 laser pulses, the time measurement remains consistent regardless of temperature changes.
Very Low hysteresis between black and white objects on the Diffuse model.
Specifications:
| Sensing Mode | Polarized Retro-Reflective |
| Features | Time of Flight Technology - super long distance and high repeat accuracy |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 70mA |
| Light Source | Red Laser Diode 650nm |
| FDA Laser Class | Class I |
| Sensing Distance | 20m |
| Spot Size | Ø50mm at 20m |
| Repeatability | 10mm |
| Hysteresis | 3% at 4 to 20m |
| Sensitivity Adjustment | Potentiometer 12-turn |
| Display | LED Indicator |
| External Input | Laser Off |
| Response Time | 0.2ms |
| Control Output | NPN |
| Timing Option | N/A |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | M12 5P QD |
| Includes | Mounting Bracket and V-61 Reflector |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
