OPTEX SR-150P POLARIZED RETRO-REFLECTIVE 1.5M PNP 2M CABLE
Starting At: $107.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: SR-150P
IMS Product Code: 1781475
Packaging: Sold Individually
Description:

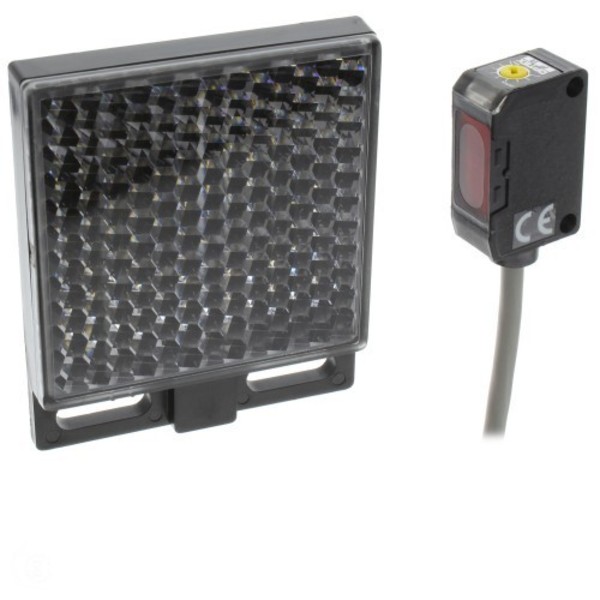

Optex SR-150P Polarized Retro-reflective 1.5M PNP 2M cable
Compact photoelectric sensor in a 17X10X20 mm enclosure. Perfect for many applications with tight space requirements.
Specifications:
| Sensing Mode | Polarized Retro-Reflective |
| Sensing Distance | 1.5 meter |
| Min Detectable Object/Hysteresis | 45mm Opaque |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | PNP |
| Output Operation Mode | Light-On / Dark-On switch selectable |
| Timer | |
| Enclosure | PBT with glass (case), PC lens |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to +55° C |
| Connection | 2 meter cable |
| Includes | BEF-W150-B brackets & screws, V-61 reflector |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
