OPTEX NF-TG05 Ø2 CYLINDRICAL TBEAM R1 FIBER W/Ø1X15 SLEEVE
Starting At: $294.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TG05
IMS Product Code: 1781229
Packaging: Sold Individually
Description:
Optex NF-TG05 Ø2 Cylindrical Tbeam R1 Fiber w/Ø1x15 Sleeve
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth w/ sleeve |

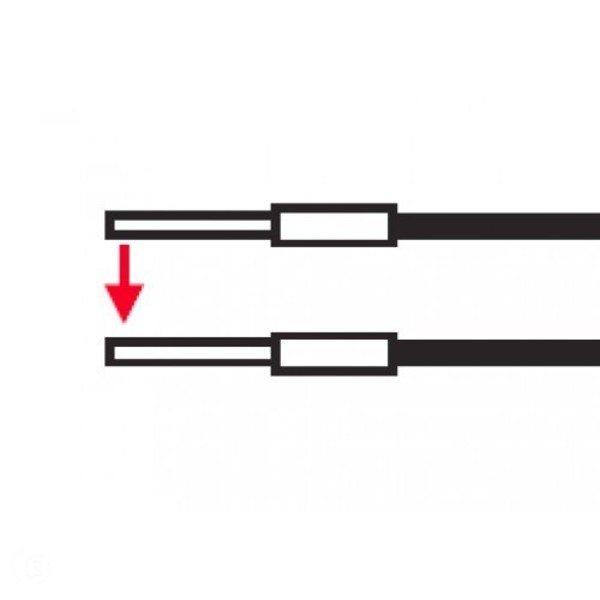

| Beam Sensing Direction | Sideview Sensing |
| Features | |
| Mounting Size Dimension | Ø 2 mm |
| Mounting Size Length | 15 mm |
| D3RF Max Sensing Distance | 160 mm |
| Min. Detectable Object (D3RF) | |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | Non-bendable |
| Sleeve Diameter | Ø 1.0 mm |
| Sleeve Length | 15 mm |
| Sleeve Bend Radius | |
| Temperature | -40 to 60° C |
| Fiber Core | Multicore |
| Fiber Cable Bend Radius | R1 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
