OPTEX NF-TB07 Ø2.5 CYLINDRICAL THRUBEAM R25 FIBER 2M CUTTABLE
Starting At: $52.92
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TB07
IMS Product Code: 1781217
Packaging: Sold Individually
Description:

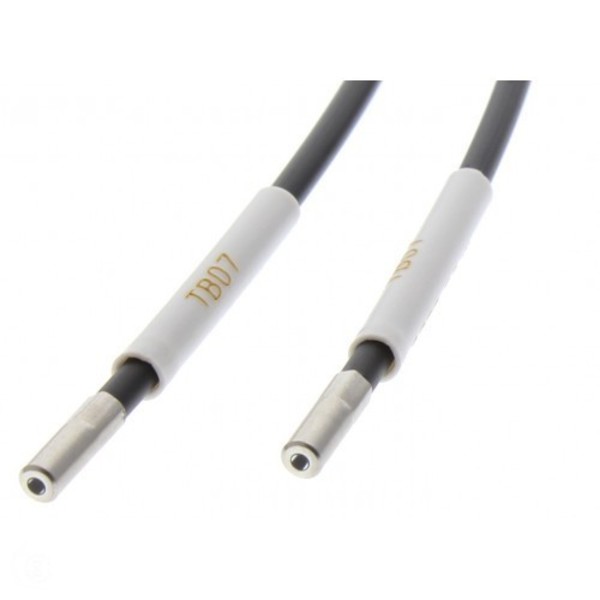

Optex NF-TB07 Ø2.5 Cylindrical Thrubeam R25 Fiber 2m Cuttable
Smooth barrel only 2.5mm in diameter. Maximum 1.7 meter detection with D3RF
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | Ø 2.5 mm |
| Mounting Size Length | 8 mm |
| D3RF Max Sensing Distance | 1710 mm |
| Min. Detectable Object (D3RF) | Ø 0.03 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | 1 |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
