OPTEX NF-TB01-5 M4 THRUBEAM R30 FIBER 5M LENS ADAPTABLE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TB01-5
IMS Product Code: 1781212
Packaging: Sold Individually
Description:

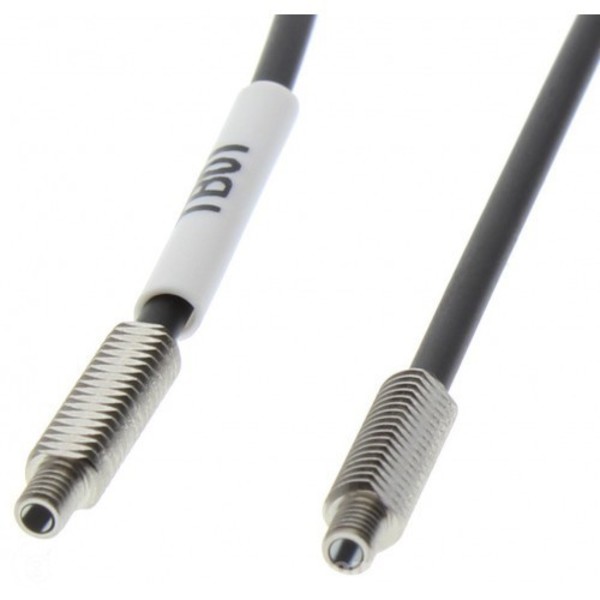

Optex NF-TB01-5 M4 Thrubeam R30 Fiber 5m Lens Adaptable
5 meter cable version
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Threaded |
| Beam Sensing Direction | Axial Sensing |
| Features | Thrubeam Add-On Lens Compatible |
| Mounting Size Dimension | M4 |
| Mounting Size Length | 10 mm |
| D3RF Max Sensing Distance | 4000 mm |
| Min. Detectable Object (D3RF) | Ø 0.5 mm |
| Lens Compatible | Lens attachable |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | 1.5 |
| Fiber Cable Bend Radius | R30 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 5 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter |
