OPTEX NF-DR09 DIFFUSE R1 MAPPING FIBER SQUARE HEAD-ON SENSE
Starting At: $279.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DR09
IMS Product Code: 1781106
Packaging: Sold Individually
Description:
Optex NF-DR09 Diffuse R1 Mapping Fiber Square Head-On Sense
Wafer Mapping Fiber
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Rectangular shape/thin |

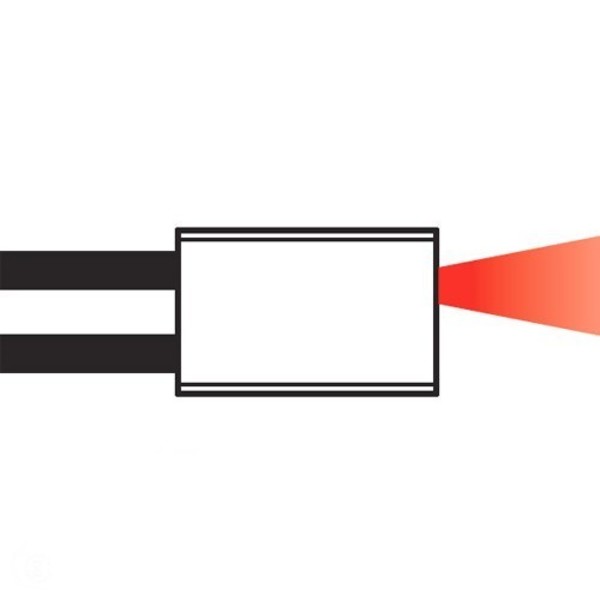

| Beam Sensing Direction | Axial Sensing |
| Features | Designed for wafer mapping utilizing a BK7 glass lens |
| Mounting Size Dimension | 15 x 9.5 x 5.2 mm |
| Mounting Size Length | |
| D3RF Max Sensing Distance | 1070 mm |
| Min. Detectable Object (D3RF) | Ø 0.03 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 60° C |
| Fiber Core | 0.075 x 151 |
| Fiber Cable Bend Radius | R1 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and mounting strap |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
