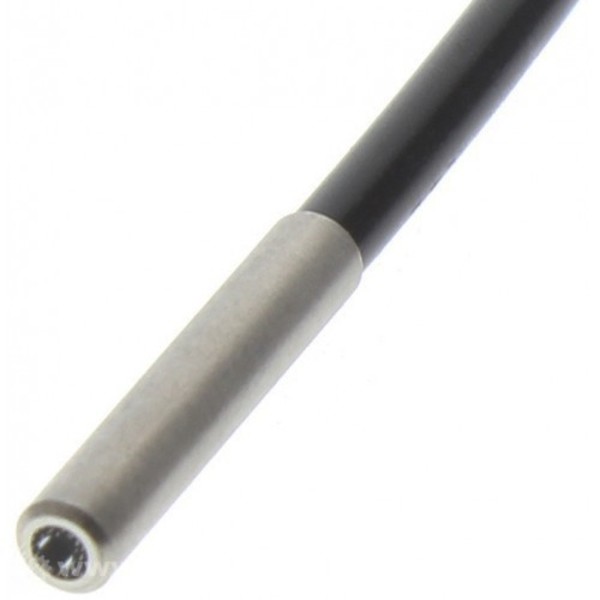

OPTEX NF-DK23 Ø3 CYLINDRICAL DIFFUSE COAXIAL R25 FIBER 500MM
Starting At: $78.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DK23
IMS Product Code: 1781061
Packaging: Sold Individually
Description:
Optex NF-DK23 Ø3 Cylindrical Diffuse Coaxial R25 Fiber 500mm
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | Ø 3 mm |
| Mounting Size Length | 17 mm |
| D3RF Max Sensing Distance | 500 mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Lens Compatible | |
| Coaxial Fiber | Coaxial type |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | Coaxial |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | 2.6 mm |
| Fiber Cable Length | .5 meters |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
