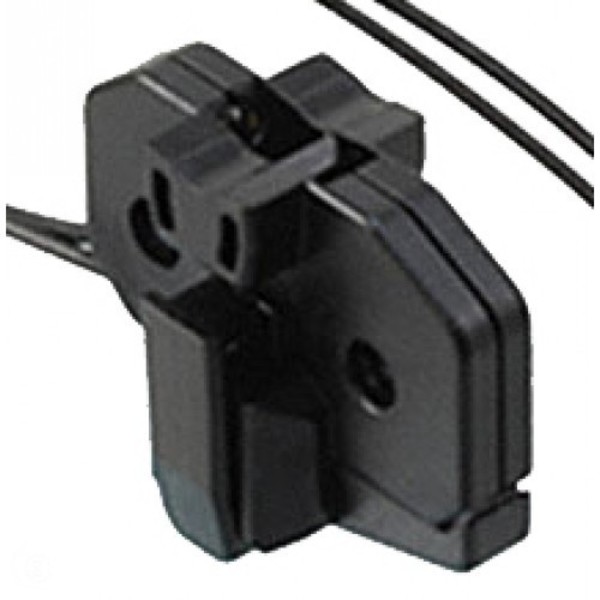

OPTEX NF-DF04 PIPE/TUBE MOUNT FOR LIQUID LEVEL 6-26MM OD / 1-3MM
Starting At: $176.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DF04
IMS Product Code: 1781039
Packaging: Sold Individually
Description:
Optex NF-DF04 Pipe/Tube Mount for Liquid Level 6-26mm OD / 1-3mm thick.
Specifications:
| Sensing Type | Level Sensing |
| Sensing Method | Pipe Mount |
| Features | Adjustable lever provides easy level change of sensor on PFA/transparent tubes with OD of 6 and 26mm and a thickness of 1.0mm |
| Use with Fiber Amp Model | D3RF |
| Dimension | 20 x 25 x 13 mm |
| Temperature | -40 to 100° C |
| Fiber Protection | |
| Fiber Protection Length / Bend Radius | |
| Fiber Cable Bend Radius | R10 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber cutter, tips, mounting straps |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
