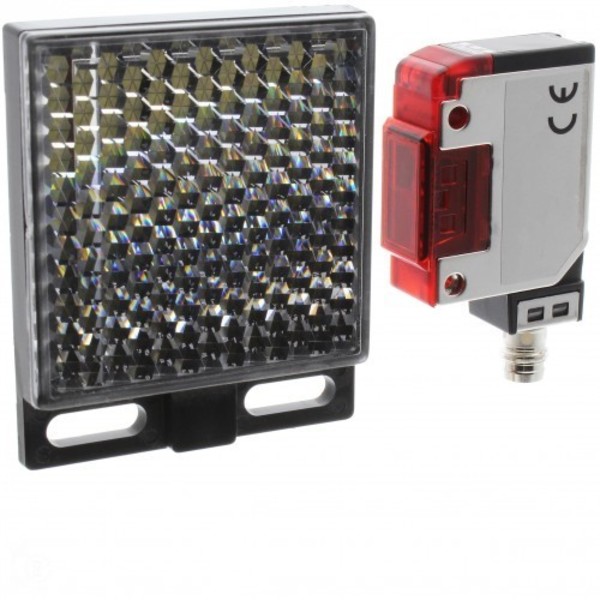

OPTEX KR-Q300CNW POL RETRO-REFLECTIVE FOR CLEAR TARGETS 3M NPN M8
Starting At: $191.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: KR-Q300CNW
IMS Product Code: 1780857
Packaging: Sold Individually
Description:
Optex KR-Q300CNW Pol Retro-reflective for Clear Targets 3M NPN M8 QD
The stainless steel housing helps to protect the sensor against mechanical damage if it is hit by passing objects
The built in mounting nuts make installation easy and efficient, the problems of damaged threads due to overtightening has been eliminated.
The noise resistant internal circuitry is designed in accordance with the strict VDE standard.
Specifications:
Sensing Mode / Type | Polarized Retro-Reflective for Transparent Object Detection |
Sensing Distance | 3 meter |
Overall Sensing Distance | 0.01 to 3 meter |
Resolution / Min Detectable Object | 40mm min detectable object |
Light Source | Red LED |
Supply Voltage | 10 to 30 VDC |
Current Consumption | 20mA max |
Response Time | 0.7ms |
Sensitivity Adjustment | 1-turn potentiometer |
Hysteresis | |
Output | NPN |
Output Operation Mode | LO/DO Selectable |
Material | ABS (case) PMMA (lens) SUS304 (cover) |
Protection | IP67 |
Shock Rating | 100G |
Temperature | -25 to 55° C |
Special Features | Compact SUS |
Connection | M8 4 pin QD |
Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
