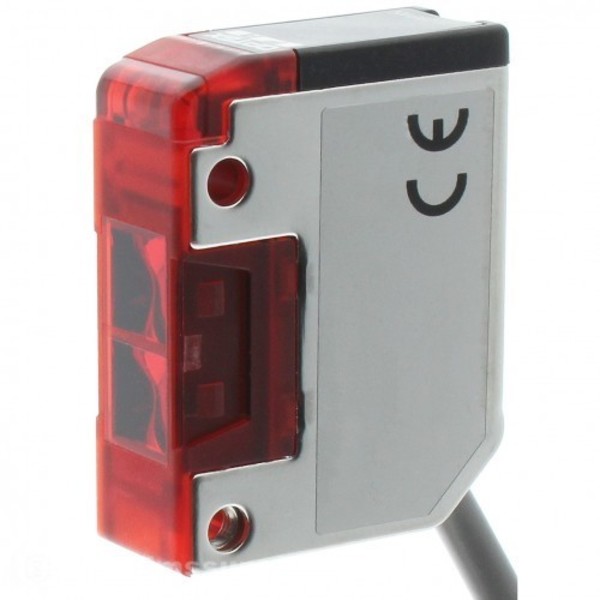

OPTEX KD-L09P STAINLESS STEEL ENCASED CONVERGENT 10 TO 90MM PNP
Starting At: $92.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: KD-L09P
IMS Product Code: 1780827
Packaging: Sold Individually
Description:
Optex KD-L09P Stainless Steel Encased Convergent 10 to 90mm PNP 2M cable
The stainless steel housing helps to protect the sensor against mechanical damage if it is hit by passing objects
The built in mounting nuts make installation easy and efficient, the problems of damaged threads due to overtightening has been eliminated.
The noise resistant internal circuitry is designed in accordance with the strict VDE standard.
Specifications:
| Sensing Mode / Type | Convergent |
| Sensing Distance | 90mm |
| Overall Sensing Distance | 10 to 90mm |
| Resolution / Min Detectable Object | |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA max |
| Response Time | 0.7ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | 0.1 |
| Output | PNP |
| Output Operation Mode | LO/DO Selectable |
| Material | ABS (case) PC (lens) SUS304 (cover) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Special Features | Compact SUS |
| Connection | 2 meter cable |
| Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
