OPTEX JT-S1000P COMPACT THRUBEAM 10M PNP 2M CABLE
Starting At: $156.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: JT-S1000P
IMS Product Code: 1780809
Packaging: Sold Individually
Description:
Optex JT-S1000P Compact Thrubeam 10M PNP 2M cable

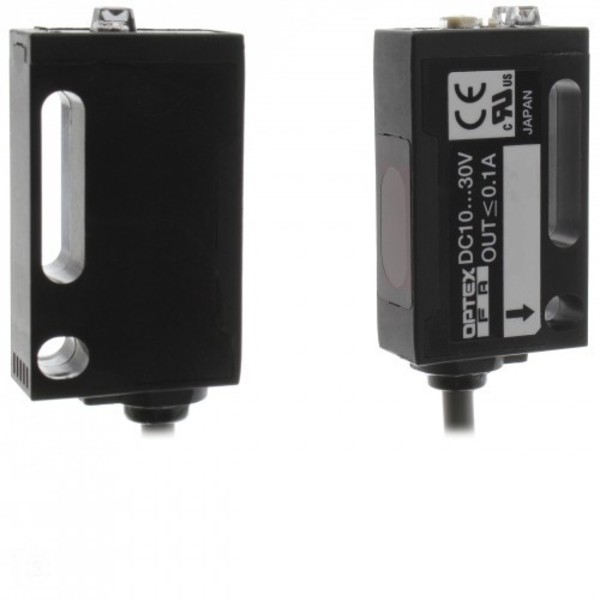

side sensing type with slotted mounting holes for flexible mounting
Both the horizontal and side sensing versions have slotted holes for flexible mounting. This picture shows the horizontal version
Specifications:
| Sensing Mode / Type | Thrubeam |
| Special Features | Side-on sensing type |
| Sensing Distance | 10 meter |
| Resolution / Min Detectable Object | |
| Light Source | Infrared LED |
| Beam Spot Size / Distance Ø | |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 35mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 2-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | PBT (case) PC (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
