OPTEX JR-SQ50PW POL RETRO-REFLECTIVE FOR CLEAR TARGETS .5M 2M
Starting At: $196.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: JR-SQ50PW
IMS Product Code: 1780783
Packaging: Sold Individually
Description:
Optex JR-SQ50PW Pol Retro-reflective for Clear Targets .5M 2M cable
side sensing type with slotted mounting holes for flexible mounting

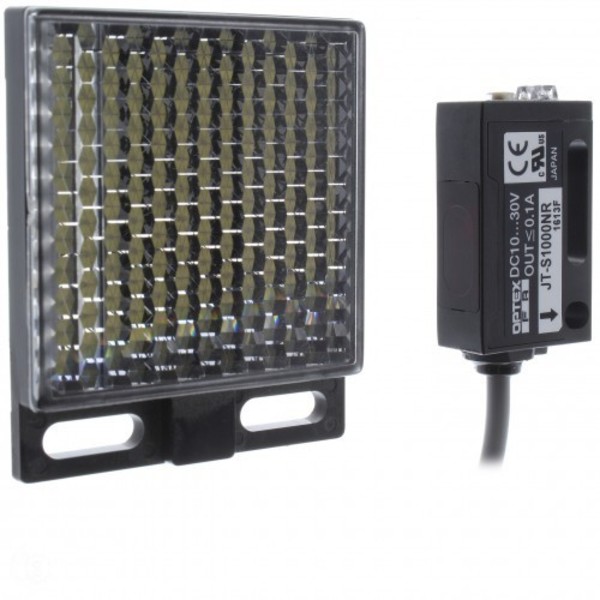

Both the horizontal and side sensing versions have slotted holes for flexible mounting. This picture shows the horizontal version
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective for Transparent Object Detection |
| Special Features | Side-on sensing type |
| Sensing Distance | 0.1 to 500mm |
| Resolution / Min Detectable Object | |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 2-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | PBT (case) PC (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Reflector (V-61), mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
