OPTEX JD-SW08CN COMPACT DIVERGENT 80MM NPN M8 QD
Starting At: $156.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: JD-SW08CN
IMS Product Code: 1780757
Packaging: Sold Individually
Description:
Optex JD-SW08CN Compact Divergent 80mm NPN M8 QD
side sensing type with slotted mounting holes for flexible mounting

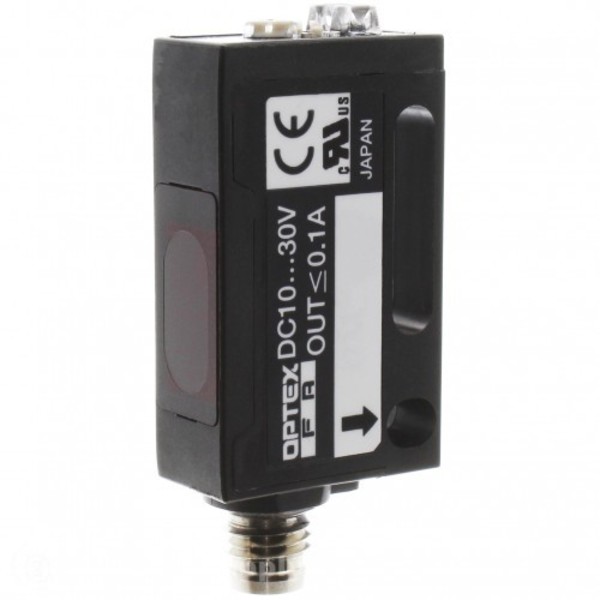

Both the horizontal and side sensing versions have slotted holes for flexible mounting. This picture shows the horizontal version
Specifications:
| Sensing Mode / Type | Divergent |
| Special Features | Side-on sensing type |
| Sensing Distance | 80mm |
| Resolution / Min Detectable Object | |
| Light Source | Infrared LED |
| Beam Spot Size / Distance Ø | |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 2-turn potentiometer |
| Hysteresis | |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | PBT (case) PC (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
