OPTEX JD-SL03N COMPACT CONVERGENT 20 TO 50MM NPN 2M CABLE
Starting At: $142.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: JD-SL03N
IMS Product Code: 1780751
Packaging: Sold Individually
Description:
Optex JD-SL03N Compact Convergent 20 to 50mm NPN 2M cable
side sensing type with slotted mounting holes for flexible mounting

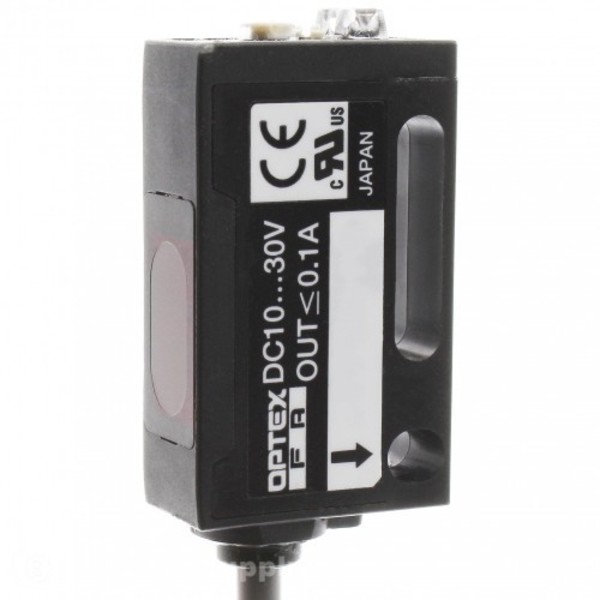

Both the horizontal and side sensing versions have slotted holes for flexible mounting. This picture shows the horizontal version
Specifications:
| Sensing Mode / Type | Convergent |
| Special Features | Side-on sensing type |
| Sensing Distance | 20 to 50mm |
| Resolution / Min Detectable Object | |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 2-turn potentiometer |
| Hysteresis | |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | PBT (case) PC (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
