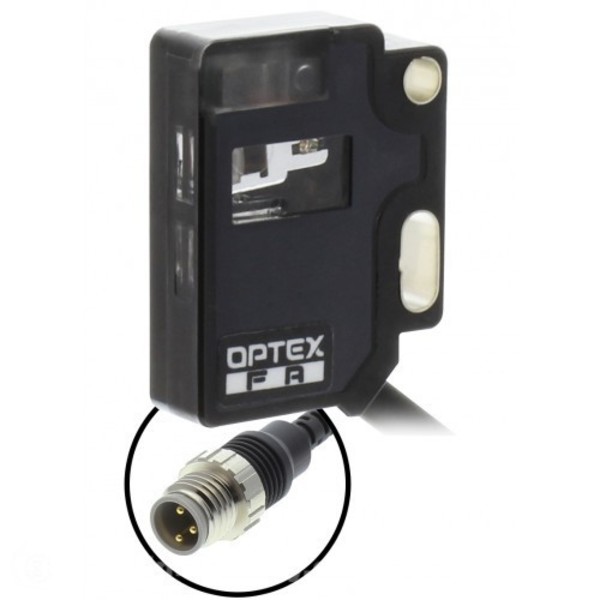

OPTEX EL-S15NL3 SIDE SENSING CONVERGENT 2 TO 15MM NPN LIGHT-ON M8
Starting At: $93.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: EL-S15NL3
IMS Product Code: 1780612
Packaging: Sold Individually
Description:
Optex EL-S15NL3 Side Sensing Convergent 2 to 15mm NPN Light-On M8 pigtail QD
Only 5mm thick.
All models have achieved IP67 rating adn all models are ROHS compliant.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation.
Specifications:
| Sensing Mode / Type | Convergent |
| Special Features | Super side-sensing type |
| Sensing Distance | 2 to 15mm |
| Resolution / Min Detectable Object | ±0.1mm max. |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø2mm/15mm |
| Supply Voltage | 12 to 24 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | None |
| Hysteresis | 0.1 |
| Output | NPN |
| Output Operation Mode | Light-On |
| Material | PC |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 3 pin QD pigtail |
| Includes | Mounting screw, washer and nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
