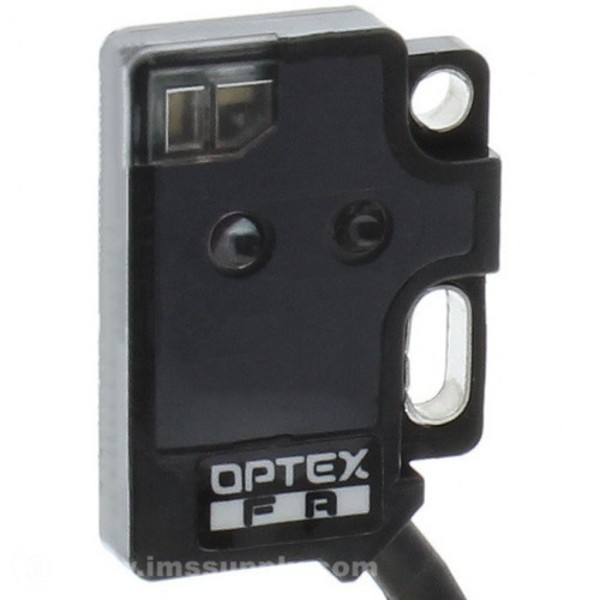

OPTEX EL-08PD FRONT SENSING CONVERGENT 3 TO 8MM PNP DARK-ON 2M
Starting At: $78.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: EL-08PD
IMS Product Code: 1780583
Packaging: Sold Individually
Description:
Optex EL-08PD Front sensing Convergent 3 to 8mm PNP Dark-On 2M cable
Front sense version only 3.5mm thick perfect for mounting in tight spaces.
All models have achieved IP67 rating adn all models are ROHS compliant.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation
Specifications:
| Sensing Mode / Type | Convergent |
| Special Features | Front sensing type |
| Sensing Distance | 3 to 8mm |
| Resolution / Min Detectable Object | 0.2mm or less |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø10mm/8mm |
| Supply Voltage | 12 to 24 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | None |
| Hysteresis | 0.1 |
| Output | PNP |
| Output Operation Mode | Dark-On |
| Material | PC |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Mounting screw, washer and nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
