OPTEX ED-100PD3 FRONT SENSING DIFFUSE 100MMPNP DARK-ON M8 PIGTAIL
Starting At: $93.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: ED-100PD3
IMS Product Code: 1780566
Packaging: Sold Individually
Description:

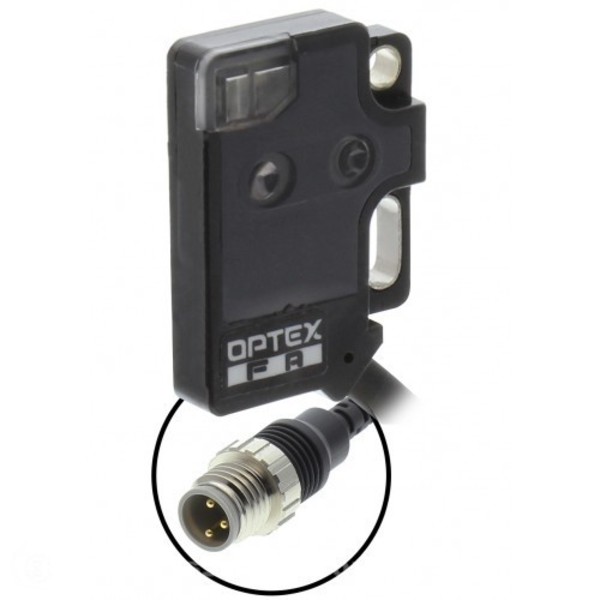

Optex ED-100PD3 Front sensing Diffuse 100mm PNP Dark-On M8 pigtail QD
Front sense version only 3.5mm thick perfect for mounting in tight spaces.
All models have achieved IP67 rating adn all models are ROHS compliant.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation.
Specifications:
| Sensing Mode / Type | Diffuse |
| Special Features | Front sensing type |
| Sensing Distance | 100mm |
| Resolution / Min Detectable Object | 2.5mm or less |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø60mm/100mm |
| Supply Voltage | 12 to 24 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | None |
| Hysteresis | 0.15 |
| Output | PNP |
| Output Operation Mode | Dark-On |
| Material | PC |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 3 pin QD pigtail |
| Includes | Mounting screw, washer and nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
