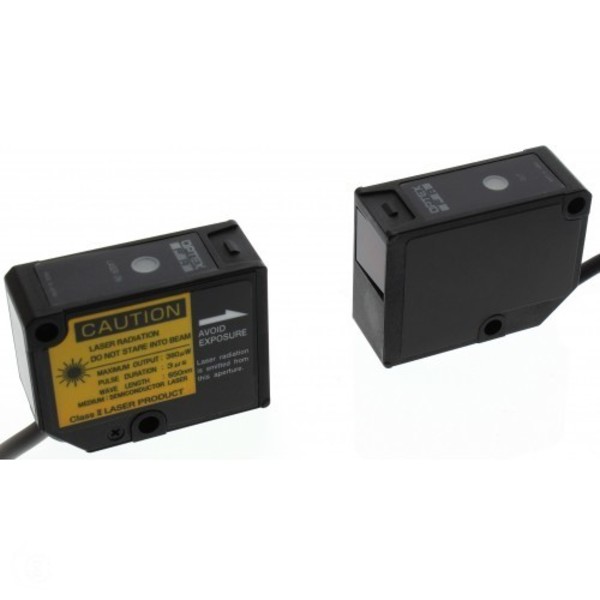

OPTEX DSTC-200 THRUBEAM 2MM BEAM LASER HEAD 2 METER
Starting At: $529.20
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: DSTC-200
IMS Product Code: 1780543
Packaging: Sold Individually
Description:
Optex DSTC-200 Thrubeam 2mm Beam Laser Head 2 Meter
The DSTC-200 has 2 Meter range and very small collimated 2mm beam
Specifications:
| Sensing Mode | Thrubeam |
| Features | Narrow Beam |
| Supply Voltage | Order D2SA amplifier separately |
| Operation Temperature | -10 to +55° C |
| Sensing Distance | 2 meter |
| Repeatability / Response Time | 0.2mm |
| Light Source | Red Laser Diode |
| Wave Length | 650nm |
| Maximum Output | 390 W |
| Laser Class IEC / JIS | Class 1 |
| Laser Class FDA | Class I |
| Laser Spot Size (Diffuse Reflective) | Ø 2mm at 2 meter |
| Digital Control Output | Requires D2SA amplifier |
| Analog Output | Requires D2SA amplifier |
| Protection / Enclosure Type | IP67/PC (case, cover) Glass (lens) |
| Connection | 2 meter with attached amplifier connector |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
