OPTEX DR-500N(E) 5 METER RETRO LASER NPN 2 METER CABLE
Starting At: $124.20
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: DR-500N(E)
IMS Product Code: 1780492
Packaging: Sold Individually
Description:

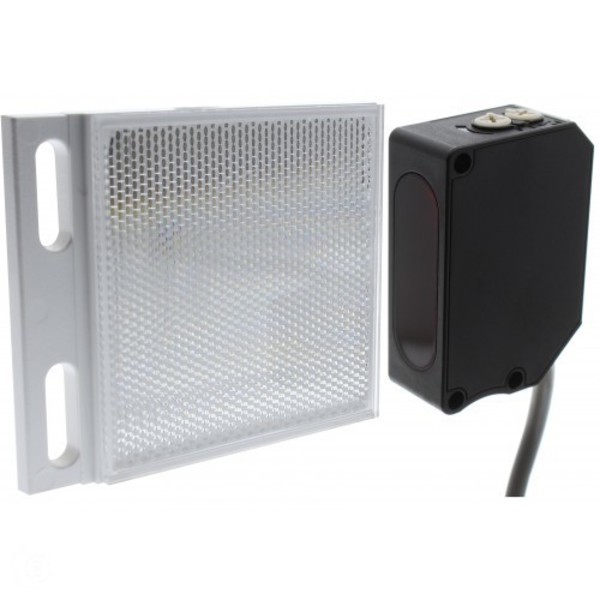

Optex DR-500N(E) 5 meter Retro Laser NPN 2 Meter Cable
Coaxial Optics along with collimated Laser light source allows for small repeatable object detection at sensing distances up to 5 meters.
Small beam spot even at 5 meters of range
Specifications:
| Sensing Mode | Polarized Retro-Reflective |
| Features | Coaxial type beam provides super tight laser beam and high accuracy |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 30mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | Max 2mW 4s |
| FDA Laser Class | Class II |
| Sensing Distance | 0 to 5m |
| Spot Size | Ø20mm at 3.5m |
| Repeatability | 0.5mm |
| Hysteresis | N/A |
| Sensitivity Adjustment | Potentiometer 1-turn |
| Display | LED Indicator |
| External Input | N/A |
| Response Time | 0.5ms |
| Control Output | NPN |
| Timing Option | N/A |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | 2m cable |
| Includes | BEF-W100B Mtg Brkt and P250F Reflector |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
