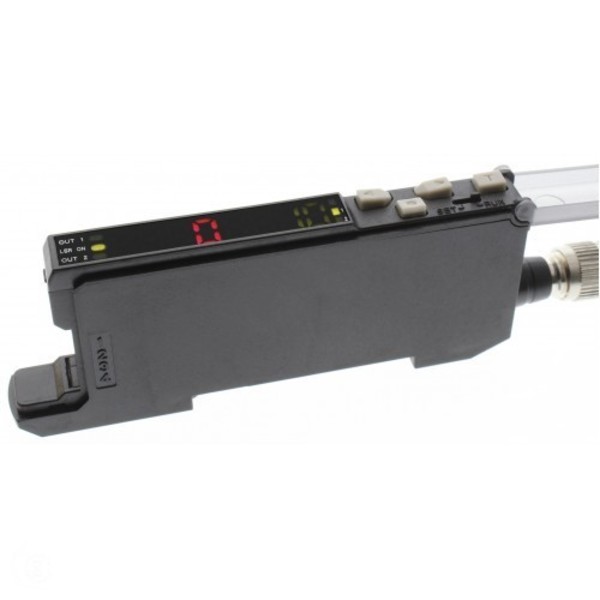

OPTEX D2SA-MPS-M8 LASER AMPLIFIER STAND ALONE 1 CHANNEL PNP M8 QD
Starting At: $328.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: D2SA-MPS-M8
IMS Product Code: 1780410
Packaging: Sold Individually
Description:
Optex D2SA-MPS-M8 Laser Amplifier Stand Alone 1 Channel PNP M8 QD
The threshold and the reflected light level are both indicated at the same time making the sensitivity set-up easy.
Quick connection between laser head and amplfier with the Econ connector. All laser heads are connectable to any D2SA amplifier.
Specifications:
| Sensing Mode | Digital Display Push-Button Teach Amplifier |
| Features | Stand-Alone Type |
| Supply Voltage | 12-24 VDC ±10% |
| Operation Temperature | -25 to +55° C |
| Sensing Distance | N/A |
| Repeatability / Response Time | 60µs, 500µs & 2ms |
| Light Source | |
| Wave Length | |
| Maximum Output | |
| Laser Class IEC / JIS | |
| Laser Class FDA | |
| Laser Spot Size (Diffuse Reflective) | N/A |
| Digital Control Output | 1CH PNP |
| Analog Output | None |
| Protection / Enclosure Type | IP50 |
| Connection | M8 4 Pin QD |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
