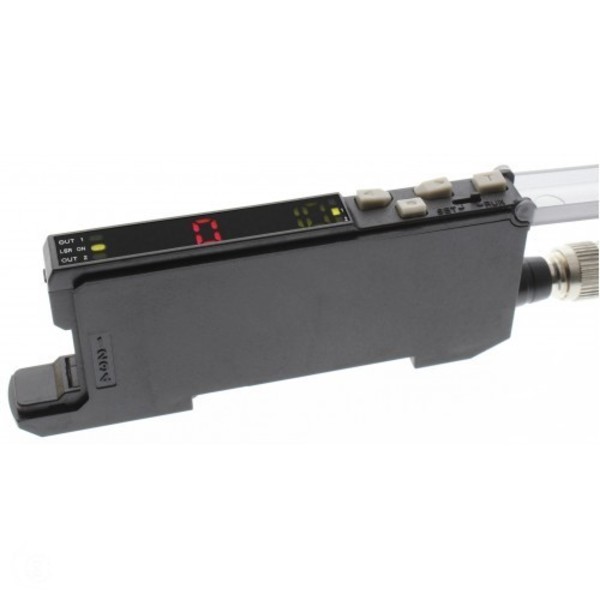

OPTEX D2SA-MN-M8 LASER AMPLIFIER MAIN UNIT 1 CHANNEL NPN M8 QD
Starting At: $328.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: D2SA-MN-M8
IMS Product Code: 1780401
Packaging: Sold Individually
Description:
Optex D2SA-MN-M8 Laser Amplifier Main Unit 1 Channel NPN M8 QD
The threshold and the reflected light level are both indicated at the same time making the sensitivity set-up easy.
Quick connection between laser head and amplfier with the Econ connector. All laser heads are connectable to any D2SA amplifier.
Interconnect version allows for simple connection betweein main unit and sub units.
Specifications:
| Sensing Mode | Digital Display Push-Button Teach Amplifier |
| Features | Master Unit - Interconnect Type |
| Supply Voltage | 12-24 VDC ±10% |
| Operation Temperature | -25 to +55° C |
| Sensing Distance | N/A |
| Repeatability / Response Time | 60µs, 500µs & 2ms |
| Light Source | |
| Wave Length | |
| Maximum Output | |
| Laser Class IEC / JIS | |
| Laser Class FDA | |
| Laser Spot Size (Diffuse Reflective) | N/A |
| Digital Control Output | 1CH NPN |
| Analog Output | None |
| Protection / Enclosure Type | IP50 |
| Connection | M8 4 Pin QD |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
