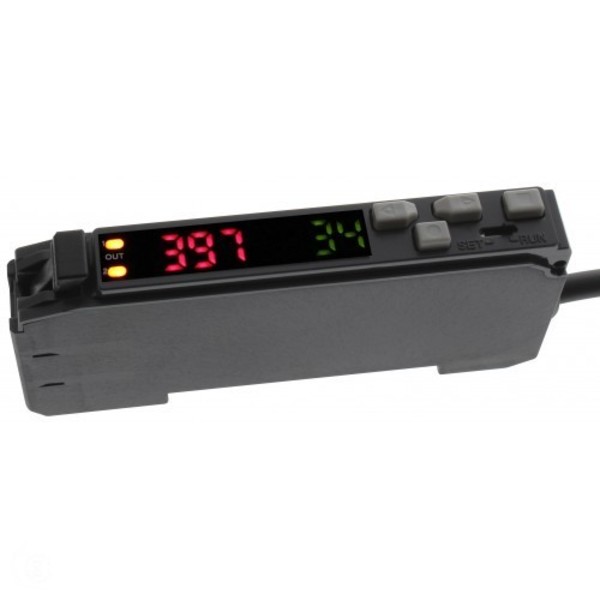

OPTEX D2GF-TP DIGITAL TEACH FO AMP STAND-ALONE GREEN 2CH LED PNP
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: D2GF-TP
IMS Product Code: 1780365
Packaging: Sold Individually
Description:
Optex D2GF-TP Digital Teach FO Amp Stand-Alone Green 2CH LED PNP 2M Cable
Every version of the D2RF has 2 digital outputs. 4-20ma analog output is also available on select models. Stand alone and interconnect models are also available. Standard versions are IP50 but there are IP66 models available. As fast as 60 microsecond response time 3 step power adjustment for LED emitting power
Cross talk prevention for up to 4 sensors when using the interconnet version.
Specifications:
| Sensing Mode - Type | Fiber Optic Amplifier |
| Features | Dual 4 Digit Display |
| Sensitivity Adjustment | PB teach with 2-button fine adjust |
| Supply Voltage | 12 to 24 VDC |
| Light Source | Green LED |
| Indicators | Dual Digital LEDs Light Level (Red) Threshold (Green) |
| Model Type | Stand-Alone Type |
| Cross-Talk Prevention | Up to 4 amplifiers using interconnect type |
| LED Power Level Control | 3 Steps: 100%, 50%, and 25% |
| Current Consumption | 45mA |
| Response Time | Programmable: 60µs, 250µs, and 2ms |
| Output | 2 each PNP |
| Output Operation Mode | Light-on / dark-on selectable |
| Timer/Counter Option | Programmable time delay or up/down counter |
| Shock Rating | 50G |
| Protection | IP50 |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | BEF-WLL170 DIN bracket |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
