OPTEX CVSE1-P20-RA COLOR AREA SENSOR ALL IN ONE DESIGN STANDARD
Starting At: $1,430.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CVSE1-P20-RA
IMS Product Code: 1783165
Packaging: Sold Individually
Description:

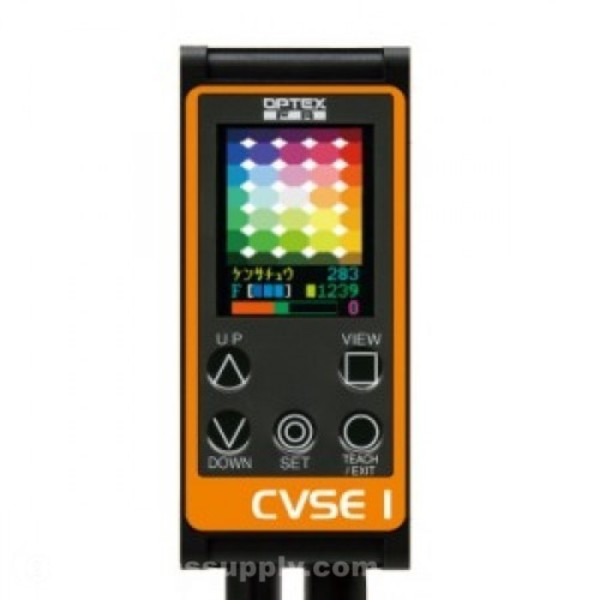

Optex CVSE1-P20-RA Color Area Sensor All In One Design Standard View Type PNP
This compact color area sensor has a built in Camera, LED Lighting, Display monitor and controller.
Setting up the sensor is a quick 3 step process that can take less than 30 seconds.
Set up the field by pressing the teach button and adjust the digital zoom with the up and down buttons
Select the color to be inspected by pressing the up an down buttons to the appropriate color
Manually adjust "tweak" the threshold if needed.
16 program banks are available. The banks can be remotely selected using PLC or switch allowing for quick product changeover
CVSE1-P20-RA Standard Range Type Field Of View
Specifications:
| Control Output | PNP |
| Item Type | Color Sensor |
| Field of View Type | Standard Range Type |
| Working Distance | 90 to 150mm |
| Field of View Size | 40x50mm ~ 65x75mm |
| Detection Angle | 20° |
| Light Source | White LED Ring |
| LED Light Duration | 50,000 hrs approximately |
| Image Sensor | 330,000 Pixel CMOS Color Image Sensor |
| Supply Voltage | 12 to 24VDC |
| Power Consumption | 120mA at 24VDC |
| Operation Temperature | 0 to 40° C |
| Response Time | 5.0ms to 22ms |
| Remote Input Functions | Teach, synchronous, and 16CH bank select |
| Protection | IP67 |
| Connection | 2 meter cable + external connector for remote lighting or monitor |
| Features | Built-in camera, LED lighting, color display monitor, and controller. Sixteen program storage banks with remote change input. |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
