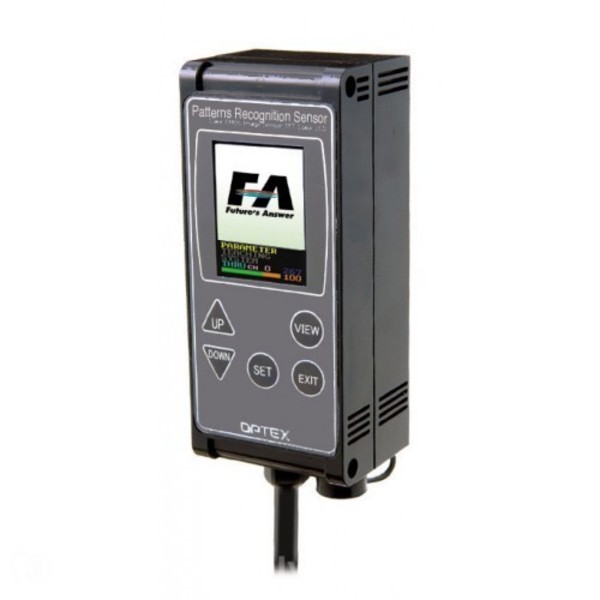

OPTEX CVS2-P40-RA COLOR SORTING OR PATTERN MATCHING NPN MACRO
Starting At: $1,871.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CVS2-P40-RA
IMS Product Code: 1783057
Packaging: Sold Individually
Description:
Optex CVS2-P40-RA Color Sorting or Pattern Matching NPN Macro View Type
Sensing distance 50 to 100mm with a 50 x 65mm to 100 x 115mm field of view
Can be set-up in either pattern match or color sorting mode
Background brightness can be corrected in order to provide an even background color
Specifications:
| Item Type | Color Sensor |
| Features | Color pattern matching, masking, zoom, programmable aux output, and sixteen bank program storage. |
| Detection Angle | 40° |
| Field of View Type | Macro View Type |
| Working Distance | 50 to 100mm |
| Field of View Size | 50x65mm ~ 100x115mm |
| Light Source | White LED Ring |
| LED Light Duration | 50,000 hrs approximately |
| Image Sensor | 330,000 Pixel CMOS Color Image Sensor |
| Supply Voltage | 12 to 24VDC |
| Power Consumption | 140mA at 24VDC |
| Operation Temperature | 0 to 40° C |
| Control Output | PNP |
| Response Time | 4ms to 22ms |
| Remote Input Functions | Teaching, synchronous, and 16CH bank select |
| Protection | IP67 |
| Connection | 2 meter cable + external connector for remote lighting or monitor |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
