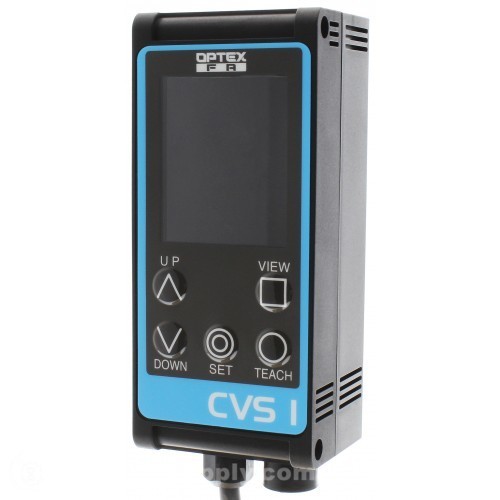

OPTEX CVS1-N20-RA COLOR AREA SENSOR 20 DEGREE DETECTION ANGLE NPN

MSRP: $1,575.00
Starting At: $1,543.50

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: CVS1-N20-RA
IMS Product Code: 1783012
Packaging: Sold Individually

Description:

Optex CVS1-N20-RA Color Area Sensor 20 Degree Detection Angle NPN

 Sensing distance 90mm with a field of view of 40 x 50mm to 55 X 65mm

Set-up is made easy with the simple intuitive user interface

Single Point teach is as simple as selecting the object color with the cursor

Specifications:

Control OutputNPN
Item TypeColor Sensor
Field of View TypeNarrow View Type
Working Distance31 to 39mm
Detection Angle20°
Field of View Size17 x 20mm ±10%
Light SourceWhite LED Ring
LED Light Duration50,000 hrs approximately
Image Sensor330,000 Pixel CMOS Color Image Sensor
Supply Voltage12 to 24VDC
Power Consumption120mA at 24VDC
Operation Temperature0 to 40° C
Response Time5.0ms to 22ms
Remote Input FunctionsTeach, synchronous, and 16CH bank select
ProtectionIP67
Connection2 meter cable + external connector for remote lighting or monitor
FeaturesBuilt-in camera, LED lighting, color display monitor, and controller. Sixteen program storage banks with remote change input.

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Optex. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
